ARC SHIELD M20FRB
Volume Discounts for ABN / Account holders -
Availability: Low inventory, stocking up soon!
Overview

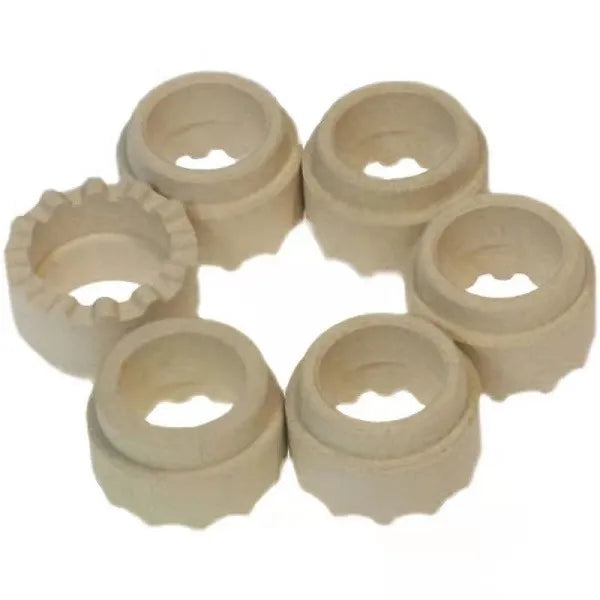

The ARC SHIELD M20FRB is a high-performance ceramic ferrule engineered for M20 drawn arc stud welding applications. Built from a refractory cordierite ceramic body, this arc shield delivers consistent weld quality, reliable arc containment, and clean, spatter-free finishes on every weld cycle. Whether you're fabricating structural shear connectors, fastening base plates, or running high-volume production welds, the M20FRB is designed to withstand rapid thermal cycling without cracking, chipping, or fragmenting under arc heat.
What Is a Ceramic Ferrule (Arc Shield)?
A ceramic ferrule — also called an arc shield or weld ferrule — is a single-use ring that fits around the base of a weld stud during the drawn arc stud welding process. As the stud gun lifts and plunges the stud into the molten weld pool, the ferrule contains the molten metal, shields the arc from atmospheric contamination, and shapes the finished weld collar. The result is a stronger, cleaner, more consistent weld with minimal post-weld cleanup.
Key Features of the ARC SHIELD M20FRB
- Precision-Molded for M20 Studs — Engineered dimensional tolerances ensure a secure, repeatable fit in the ferrule grip for consistent arc positioning weld after weld.
- Cordierite Ceramic Construction — Low thermal expansion and excellent thermal shock resistance let the ferrule move from ambient temperature to weld temperature instantly without failure.
- Clean Arc Containment — Shields the molten weld pool from oxygen, dust, and airborne contaminants, reducing porosity and improving weld integrity.
- Neat, Consistent Weld Collar — Forms a uniform fillet around the stud base for a professional, code-compliant finished weld.
- Vented Design — Integrated vents allow weld gases to escape safely during the welding cycle, reducing spatter and arc blow.
- Single-Use, Cost-Efficient — Designed as an economical consumable for high-throughput stud welding operations without sacrificing weld quality.
- Operator Protection — Helps shield the welder from arc flash and molten spatter during the weld cycle.
Typical Applications
- Structural steel shear connector (shear stud) welding
- Composite deck and thru-deck stud welding
- Base plate and anchor stud fastening
- Bridge, highway, and industrial steel fabrication
- General construction and heavy fabrication drawn arc welding
Why Choose ARC SHIELD Ceramic Ferrules
Consistent quality control and tight dimensional tolerancing mean fewer misfires, less rework, and faster cycle times on the shop floor or jobsite. The M20FRB is built to match OEM and industry-standard drawn arc welding equipment, making it a drop-in replacement for standard M20 stud welding setups.
Product Specifications
| Attribute | Detail |
|---|---|
| Model | M20FRB |
| Stud Diameter Compatibility | M20 |
| Material | Cordierite ceramic |
| Type | Single-use arc shield / ferrule |
| Welding Process | Drawn arc stud welding |
Note: Exact dimensions (height, base diameter, bore tolerance), packaging quantity, and applicable standards (e.g., ISO 13918, AWS D1.1) should be confirmed against your datasheet before publishing — these vary by manufacturer and are recommended additions for full SEO and technical accuracy.
Frequently Asked Questions
What stud size does the M20FRB fit? The M20FRB is designed for M20-diameter studs used in drawn arc stud welding.
Is the ARC SHIELD M20FRB reusable? No — like all ceramic weld ferrules, it is a single-use consumable removed and discarded after each weld once the metal has solidified.
What welding process is this ferrule used for? It is used specifically in drawn arc stud welding, not CD (capacitor discharge) or short-cycle stud welding, which typically don't require a ferrule.
