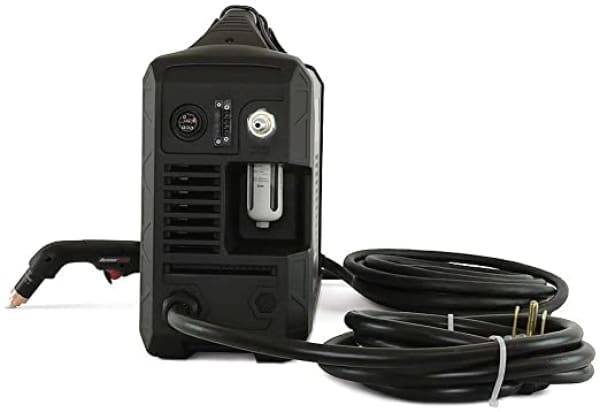

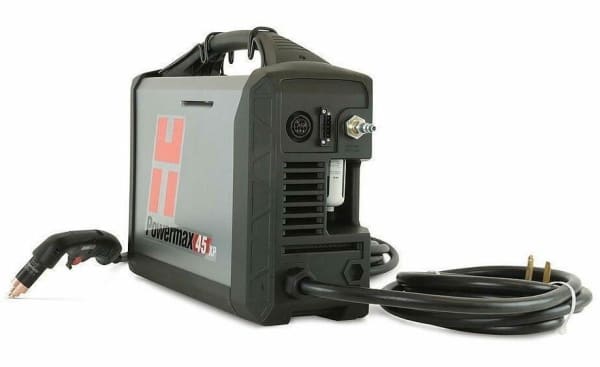

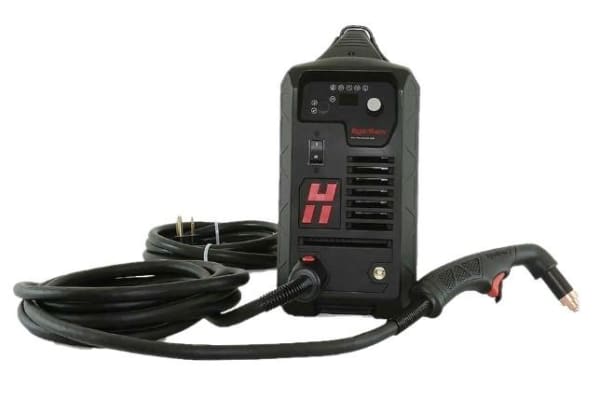

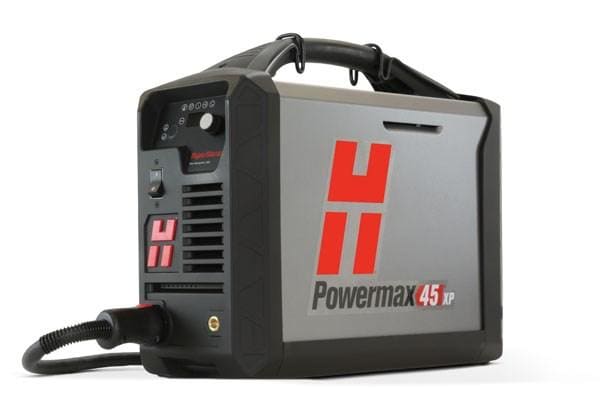

HYPERTHERM POWERMAX 45XP CPC HAND 75DG TORCH 3PH
Looking for the best plasma cutter for the money?
Meet the newest member of our best-selling line of Powermax® portable plasma systems. The Powermax45® XP plasma cutter delivers increased cut capacity – up to 16 mm (5/8”) metal – as well as faster cut speeds, and automatic gas adjustment for quick, simple setup and operation. New Duramax® Lock torches support handheld and mechanized cutting of a wider range of metal thicknesses, along with precision gouging such as spot weld removal, and marking capabilities.
Easy to use
- One of our most compact and light weight systems, the Powermax45 XP is the ideal portable plasma cutter for a 16 mm (5/8") rated cutting system
- Patented drag-cutting technology makes the Powermax45 XP easy to use – even for first-time operators
- Smart Sense™ technology ensures that air pressure is always correctly set
Outstanding versatility
- CNC interface and FastConnect™ torch connection allows both handheld and mechanized operation
- A wide range of torch and consumable styles to choose from for both handheld and automated processes
Maximum productivity
- Finish jobs faster, with cut speeds 1.5 times greater than oxyfuel on 6 mm (1/4") mild steel
- Superior cut and gouge quality reduces time for grinding and edge preparation
- New torch disable switch feature allows faster, easier changeout of consumables
Rugged and reliable
- Duramax® Lock torches are designed for high-impact and heat resistance
- SpringStart™ technology ensures consistent starting and optimum torch performance
- Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments
Advantages
• Small size and light weight provide exceptional portability for a 16mm rated cutting system.
• Operator friendly patented drag-cutting technology.
• Smart Sense™ technology ensures that air pressure is always accurate.
• CNC interface enabled.
• FastConnect™ torch connection allows both handheld and mechanized use.

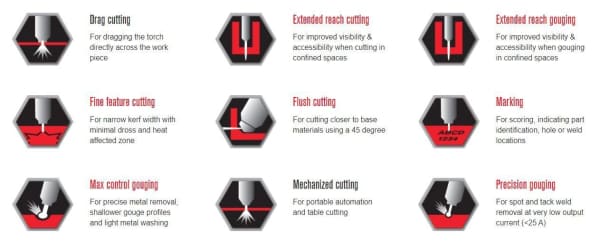

• Extensive array of specialty consumables for fine feature cutting, extended reach cutting, gouging, precision gouging, and marking.
• High-impact and heat resistant.
• SpringStart™ technology ensures consistent starting and optimum torch performance.
CAPACITY
Cutting:
• 16mm (5/8") at 500mm/min (20 ipm)
• 22mm (7/8") at 250mm/min (10 ipm)
Severance:
• 29mm (1-1/8") at 125 mm/min (5 ipm)
Pierce:
• 12mm (1/2")
Gouging:
• 3-4kg per hour
SPECIFICATIONS
• Input Voltage: 415V 3Ph
• Output: 10-45A
Duty Cycle:
• 50% @ 45A, 400V, 3Ph
• 60% @ 41A, 400V, 3Ph
• 100% @ 32A, 400V, 3Ph
Weight: 15kg
Size: 442mmD x 173mmW x 357mmH
Recommended Gas:
Cutting: Air (clean, dry and oil-free), Nitrogen, F5
Gouging: Air (clean, dry and oil-free), Nitrogen, F5
Marking: Air (clean dry and oil-free) Argon
Engine Drive Requirements: 10kW (45A output)
Torches designed for Powermax45 XP plasma system
For hand cutting and gouging jobs:
- Hypertherm Duramax® Lock 75° and 15° hand torches are well suited for a variety of applications such as goug
