BINZEL FES EXTRACTION UNIT 240V 10A POWER SOURCE ONLY)

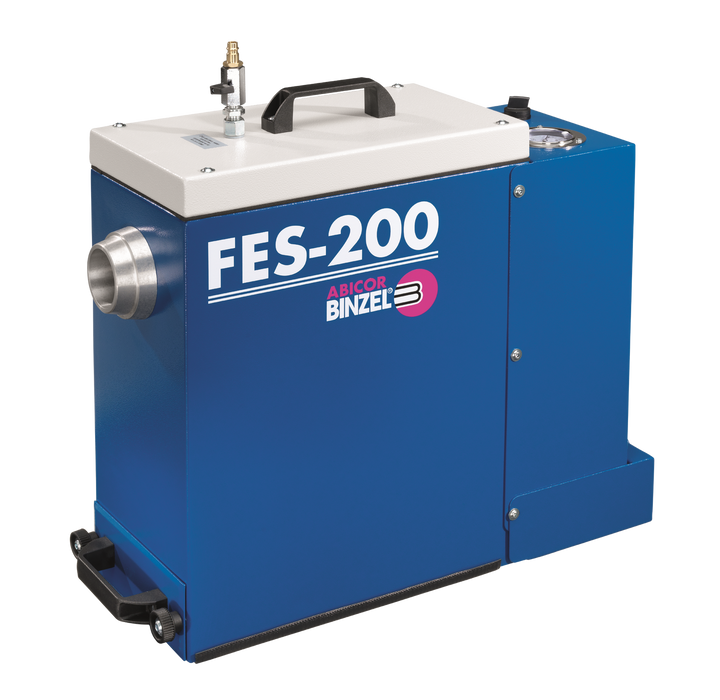

BINZEL FES-200 Extraction Unit (240V, 10A) – Power Source Only

Keep your MIG welding station running cleaner and quieter with the BINZEL FES-200 — a high-vacuum fume extraction power source built around auto start-stop operation and in-situ, self-cleaning filtration. It only runs while you're welding, which cuts unnecessary noise, trims energy use, and extends motor life by up to five times compared to units that run continuously.

Why it matters

A high-vacuum extraction unit like the FES-200 is a recognised engineering control for reducing operator exposure to welding fume, particularly relevant as Australia moves from Workplace Exposure Standards (WES) to tighter Workplace Exposure Limits (WEL) from 1 December 2026. Because the FES-200 is filter-based rather than exhaust-only, it also suits enclosed workshops where ducting fume outside isn't practical.

Key features

• Auto start-stop function — the unit only runs during active welding, reducing noise, energy consumption, and motor wear
• In-situ self-cleaning filtration — an integrated manual-rotating nozzle uses a compressed air stream to clean all filter segments in place, without removing or replacing the filter
• Fast, low-downtime servicing — cleaning is completed quickly on the unit itself, saving time versus swap-and-replace filter systems
• High-vacuum extraction — suited to standard weld filler metals

Important compatibility note

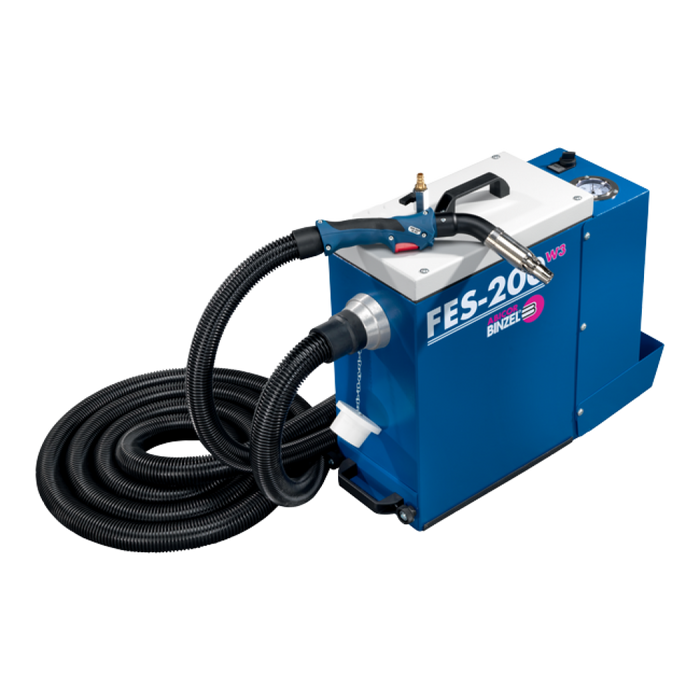

The standard FES-200 is designed for normal weld filler metals. If you're welding alloyed steels containing nickel or chrome, you'll need the FES-200-W3 version instead — the standard unit's filter isn't rated for those fume types.

This unit is the power source only — you'll need a compatible MIG torch suited to your application and power usage to complete the system.

Specifications

FAQ

Do I need a special torch for this unit?
Yes — the FES-200 is the extraction power source only. You'll need to select a MIG torch that matches both your welding application and this unit's extraction capability.

Can I use this for stainless or chrome-nickel alloy welding?
Not the standard FES-200 — for nickel- or chrome-alloyed steels, you need the FES-200-W3 version, which is built for that fume type.

Why does it have an auto start-stop function?
It only runs while welding is actually happening, rather than continuously. That cuts unnecessary noise and energy use, and extends motor service life by up to 5x compared to always-on operation.

How is the filter cleaned?
In place, without removal — a manual-rotating nozzle applies a compressed air stream across all filter segments, so there's no downtime waiting on replacement filters.
