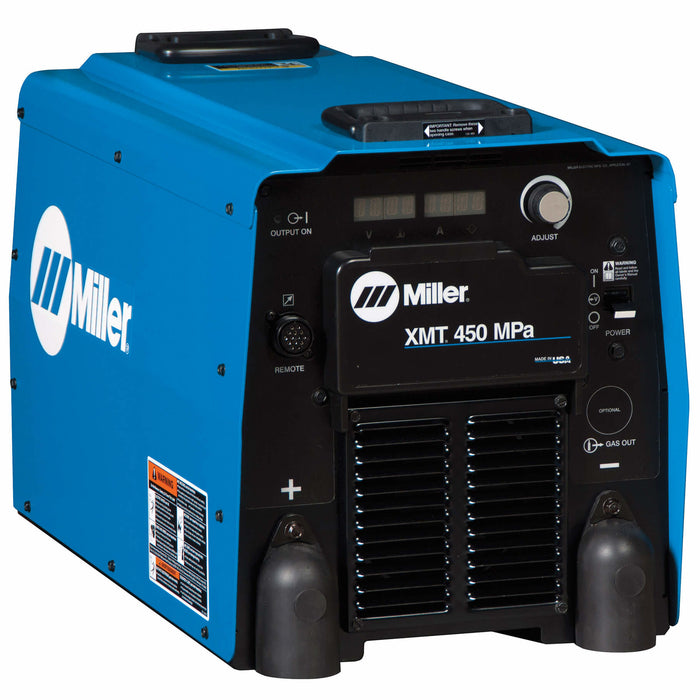

MILLER XMT 450 MPULSE MIG
Miller XMT 450 MPa — Maximum Power Multi-Process Welder
When your application demands the highest output power in its class without compromise, the Miller XMT 450 MPa is the benchmark. Built for the most demanding industrial environments, this heavy-duty 3-phase multi-process inverter welder delivers 450 amps at 100% duty cycle — meaning it can operate continuously at full power without interruption. Whether you're running high-deposition MIG on a fabrication floor, laying down critical Stick passes on a construction site, or performing precision TIG work in a repair shop, the XMT 450 MPa is engineered to perform.
Welding Processes Supported
The XMT 450 MPa is a true all-in-one multi-process machine, supporting MIG (GMAW), Pulsed MIG, TIG (GTAW), Stick (SMAW), Flux-Cored (FCAW) and Air Carbon Arc Cutting and Gouging — all from a single unit. This eliminates the cost and complexity of maintaining multiple machines across different process requirements.
Built-In Pulsed MIG Programs with Synergic Capability
Paired with the Miller S-74 MPa wire feeder, the XMT 450 MPa unlocks built-in Pulsed MIG synergic programs that automatically optimise welding parameters for a wide range of base metals — including mild steel, stainless steel, aluminium, nickel, copper, silicon bronze and titanium. The result is faster setup, more consistent arc performance, and reduced operator dependence on manual parameter adjustment.
Superior Puddle Control for Demanding Stick Applications
The XMT 450 MPa is specifically engineered for superior 6010 stick electrode performance, offering greater puddle control than standard multi-process inverters. This makes it an ideal choice for pipeline, structural and site fabrication work where 6010 cellulosic electrodes are required for root passes and vertical-up welding.
Best Output Power in Its Class
With a rated output of 450A at 38 VDC at 100% duty cycle and an amperage range of 15–600A in CC mode, the XMT 450 MPa outperforms competing multi-process machines in its category. For high-demand production environments where downtime is not an option, the 100% duty cycle rating ensures the machine keeps pace with your operation — no cooling stops, no interruptions.
Insight Core™ Compatible for Data-Driven Operations
Like the rest of the XMT MPa range, the XMT 450 MPa is compatible with Miller's Insight Core™ platform. This allows supervisors and quality managers to monitor real-time welding data, track arc-on time, and convert raw performance metrics into actionable intelligence — driving measurable improvements in productivity, weld quality and cost management.
Key Specifications
| Specification | Detail |
|---|---|
| Input Power | 3-Phase, 415V |
| Rated Output | 450A at 38 VDC, 100% Duty Cycle |
| Amperage Range (CC Mode) | 15–600 A |
| Voltage Range (CV Mode) | 10–38 V |
| Max. Open Circuit Voltage | 90 VDC |
| Input at Rated Load | 400V 3P / 27.6A / 22 kVA / 18.9 kW |
| Protection Rating | IP23 |
| Output Type | DC, CC/CV |
| Dimensions (H × W × D) | 438 × 368 × 689 mm |
| Weight | 55.3 kg |
| Item Number | MR907468 |
Industry Applications
The XMT 450 MPa is purpose-built for high-demand industrial applications across construction, shipbuilding, rail, truck and trailer manufacturing, structural and manufacturing fabrication, MRO and repair workshops, rental fleets and power generation facilities.
Frequently Asked Questions:
What is the duty cycle of the Miller XMT 450 MPa? The Miller XMT 450 MPa delivers 450A at 38 VDC at a 100% duty cycle, meaning it can operate continuously at full rated output without requiring downtime for cooling.
How does the XMT 450 MPa differ from the XMT 350 MPa? The XMT 450 MPa offers higher output power (450A vs 350A), a full 100% duty cycle (compared to 60% on the 350 MPa), a wider amperage range (up to 600A in CC mode vs 425A), and superior 6010 stick electrode puddle control — making it suited for higher-demand continuous production environments.
What processes does the Miller XMT 450 MPa support? The XMT 450 MPa supports MIG, Pulsed MIG, TIG, Stick, Flux-Cored and Air Carbon Arc Cutting and Gouging in a single multi-process unit.
What materials can the XMT 450 MPa weld? With the S-74 MPa wire feeder, the XMT 450 MPa can weld mild steel, stainless steel, aluminium, nickel, copper, silicon bronze and titanium using built-in Pulsed MIG synergic programs.
Is the Miller XMT 450 MPa suitable for 6010 stick electrode welding? Yes. The XMT 450 MPa is specifically designed to deliver superior 6010 stick electrode performance with greater puddle control, making it well suited for pipeline, structural and site fabrication applications requiring cellulosic electrodes.
Is the XMT 450 MPa compatible with Insight Core™? Yes. The XMT 450 MPa supports Miller's Insight Core™ platform for real-time welding data monitoring, arc-on time tracking and continuous quality improvement.
Download Product Brochure: Miller XMT 450 MPa
