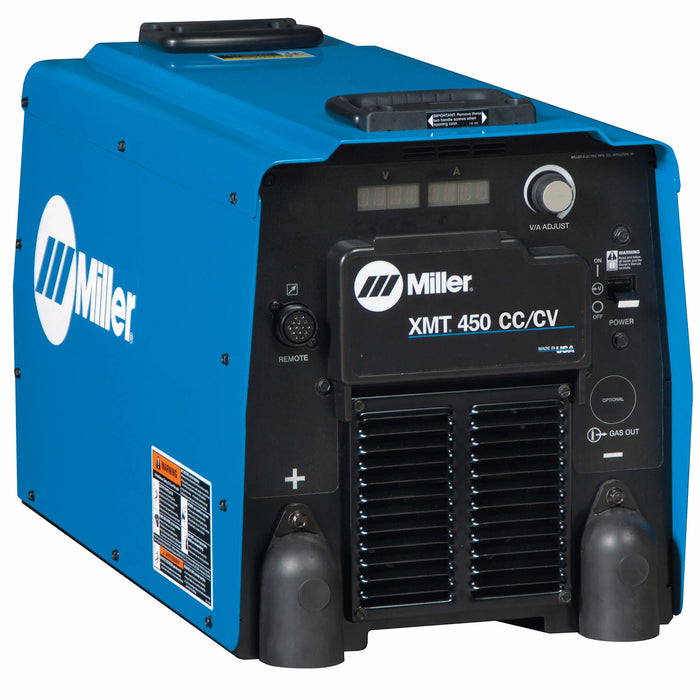

MILLER XMT 450
Miller XMT 450 CC/CV — The Industry's Most Popular Multi-Process Welder
There's a reason the Miller XMT 450 CC/CV is the most popular model in the XMT family — and across the broader multi-process welder market. It combines exceptional arc performance, proven reliability and straightforward operation in a portable, 3-phase inverter package that handles MIG, Stick, TIG, Flux-Cored and Air Carbon Arc Cutting and Gouging. For professional welders and industrial operators who need a dependable all-in-one machine without unnecessary complexity, the XMT 450 is the benchmark.
Exceptionally Smooth and Precise Arc Performance
The XMT 450 is built around Miller's industry-leading arc quality. Whether you're running smooth, spatter-free MIG beads on fabricated steel, or demanding precise TIG work on critical joints, the XMT 450's CC/CV output delivers the arc stability and control that experienced welders rely on. The result is cleaner welds, less post-weld cleanup and greater operator confidence across all supported processes.
Superior 6010 Stick Electrode Performance and Puddle Control
The XMT 450 is specifically engineered to deliver outstanding 6010 cellulosic stick electrode performance — a key requirement for pipeline, structural and site fabrication work where vertical-up and root pass welding are routine. Its precise puddle control gives welders the feel and responsiveness they need when working with demanding electrodes in challenging positions.
Multi-Process Versatility in One Portable Package
Supporting MIG (GMAW), TIG (GTAW), Stick (SMAW), Flux-Cored (FCAW) and Air Carbon Arc Cutting and Gouging, the XMT 450 eliminates the need for multiple machines across different process requirements. Its compact, portable form factor means it moves easily between bays, job sites and facilities — a key advantage for rental fleets, repair shops and contractors working across varied environments.
100% Duty Cycle at Full Rated Output
With a rated output of 450A at 38 VDC at 100% duty cycle, the XMT 450 is built for continuous, high-demand production welding. There are no cooling stops or output limitations at full power — it keeps pace with the most demanding production schedules without interruption.
Insight Core™ Compatible for Smarter Operations
The XMT 450 is compatible with Miller's Insight Core™ platform, enabling real-time monitoring of welding data, arc-on time and productivity metrics. Supervisors and quality managers can convert raw welding data into actionable insights — driving measurable improvements in output quality, operator performance and cost control across the operation.
Key Specifications
| Specification | Detail |
|---|---|
| Input Power | 3-Phase, 415V |
| Rated Output | 450A at 38 VDC, 100% Duty Cycle |
| Amperage Range (CC Mode) | 15–600 A |
| Voltage Range (CV Mode) | 10–38 V |
| Input at Rated Load | 400V 3P / 27.6A / 22 kVA / 18.9 kW |
| Protection Rating | IP23 |
| Output Type | DC, CC/CV |
| Dimensions (H × W × D) | 438 × 368 × 689 mm |
| Weight | 55.3 kg |
| Item Number | MR907525 |
Industry Applications
The XMT 450 is trusted across construction, shipbuilding, rail, truck and trailer manufacturing, structural fabrication, MRO and repair workshops, rental fleets and power generation facilities.
Frequently Asked Questions
What is the Miller XMT 450? The Miller XMT 450 CC/CV is a professional 3-phase multi-process inverter welder supporting MIG, TIG, Stick, Flux-Cored and Air Carbon Arc Cutting and Gouging. It is widely regarded as the most popular model in the XMT family for its combination of simplicity, arc performance and reliability.
What processes does the Miller XMT 450 support? The XMT 450 supports MIG (GMAW), TIG (GTAW), Stick (SMAW), Flux-Cored (FCAW) and Air Carbon Arc Cutting and Gouging.
What is the duty cycle of the Miller XMT 450? The XMT 450 delivers 450A at 38 VDC at a 100% duty cycle, allowing continuous full-power operation with no cooling downtime.
What is the difference between the Miller XMT 450 and the XMT 450 MPa? The XMT 450 MPa adds built-in Pulsed MIG synergic programs (available with the S-74 MPa wire feeder) for welding exotic metals such as aluminium, titanium, nickel and silicon bronze. The XMT 450 CC/CV is a simpler, more streamlined machine focused on core MIG, TIG, Stick and Flux-Cored processes — making it the preferred choice where Pulsed MIG capability is not required.
Is the Miller XMT 450 good for 6010 stick electrode welding? Yes. The XMT 450 is specifically designed to deliver superior 6010 cellulosic electrode performance with exceptional puddle control, making it well suited for pipeline, structural steel and site fabrication applications.
Is the XMT 450 compatible with Insight Core™? Yes. The XMT 450 is fully compatible with Miller's Insight Core™ platform for real-time welding data monitoring and productivity management.
Download Product Brochure: Miller XMT 450 CC/CV
