MILLER MAXSTAR 210DX DC TIG

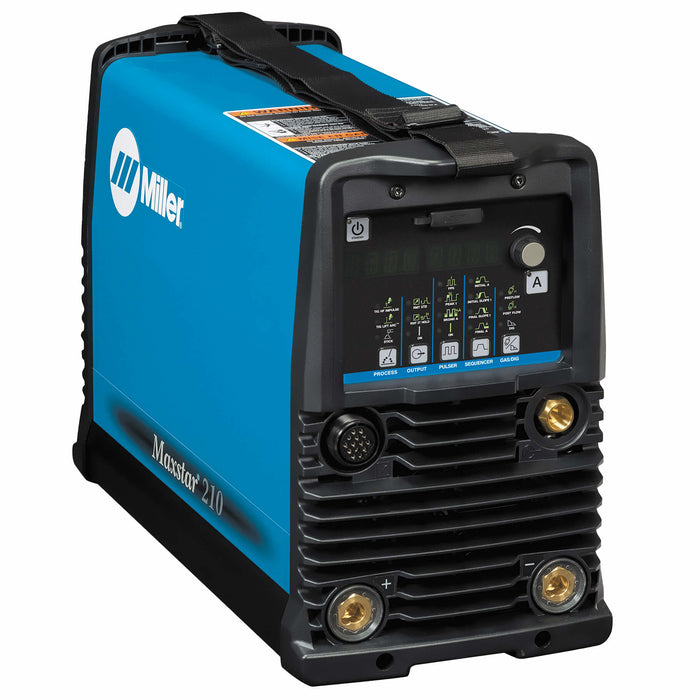

Miller Maxstar 210DX - DC TIG & Stick Welder
Miller pioneered the Maxstar-type portable DC TIG/Stick market — and the Maxstar 210DX is the perfected result. The industry-standard benchmark for premium portable DC TIG welding, it combines an ultra-lightweight 17.2kg inverter design with the full depth of Miller's advanced TIG technology, delivering the arc precision, reliability and input flexibility that critical industries demand. Whether you're welding stainless steel pipework in a petrochemical facility, fabricating food-grade dairy equipment, performing precision aerospace TIG work, or carrying out shipboard maintenance, the Maxstar 210DX is built to perform wherever you take it.
Fitted with a standard 15A plug and accepting any input voltage from 210V to 480V via Auto-Line™ technology — single or three-phase — the Maxstar 210DX connects to virtually any power source without tools, adapters or manual reconfiguration.
Blue Lightning™ — Consistent, Reliable HF Arc Starts
The Maxstar 210DX features Miller's exclusive Blue Lightning™ high-frequency arc starter for non-contact TIG arc initiation. Compared to traditional HF starters, Blue Lightning™ delivers more consistent, more reliable arc starts — reducing tungsten contamination, eliminating failed starts and giving operators the confidence to focus entirely on weld quality, not arc initiation. For precision applications in hygienic industries and critical fabrication environments, this reliability is not a luxury — it's a requirement.
Pulsed TIG for Heat Control and Weld Quality
Built-in Pulsed TIG (GTAW-P) capability allows operators to precisely manage heat input through adjustable peak and background amperage settings. This is particularly valuable when welding thin-gauge stainless steel, heat-sensitive alloys or materials where distortion control is critical — common requirements in food and beverage, dairy, petrochemical and aerospace applications. Pulse TIG also improves bead appearance and consistency, reducing post-weld finishing time.
Pro-Set™ — Speed, Confidence and Consistency from the First Arc
Pro-Set™ pre-set controls automatically configure key welding parameters, eliminating the need for manual setup calculation and ensuring every weld starts from an optimised baseline. For operators switching between jobs or materials throughout a shift, Pro-Set™ dramatically reduces setup time and the risk of parameter errors — supporting consistent, repeatable weld quality across the working day.
Auto-Line™ Technology — Any Power Source, No Reconnection
Auto-Line™ allows the Maxstar 210DX to accept any single or three-phase input voltage between 210V and 480V with no manual linking required. From standard 240V single-phase workshop supply to 415V three-phase industrial power to generator sources in the field — the machine adapts instantly. For operators working across multiple sites, facilities or power environments, this eliminates downtime and the risk of connection errors entirely.
Upgradable and Expandable via Front Panel Data Port
The Maxstar 210DX features a front panel memory card data port that enables software upgrades and feature expansion to be performed easily in the field — without sending the machine away for service. As Miller releases software enhancements or new feature sets, the Maxstar 210DX can be updated on-site, extending the machine's capability and service life without additional capital investment.
15A Plug Fitted — Ready to Work Straight from the Box
Unlike many industrial TIG welders that ship without a supply plug, the Maxstar 210DX comes fitted with a standard 15A plug — ready to connect to a standard Australian single-phase supply immediately. This is a meaningful practical advantage for operators who need to be welding, not sourcing electricians.
Key Specifications
| Specification | Detail |
|---|---|
| Input Power | Single or 3-Phase, Auto-Line™ 210–480V |
| Output Type | DC, CC |
| Processes | DC TIG (GTAW), Pulsed TIG (GTAW-P), Stick (SMAW) |
| IP Rating | IP23 |
| Open Circuit Voltage | 80 VDC (11V VRD) |
| Supply Plug | 15A fitted |
| Dimensions (H × W × D) | 346 × 219 × 495 mm |
| Weight | 17.2 kg |
| Item Number | MR907684001-1 |
TIG (GTAW) — Duty Cycle Summary
| Input | Rated Output | Duty Cycle |
|---|---|---|
| 240V 1-Phase | 210A at 18.4V | 55% |
| 240V 1-Phase | 145A at 15.8V | 100% |
| 400V / 480V 1-Phase or 400V 3-Phase | 210A at 18.4V | 60% |
| 400V / 480V 1-Phase or 400V 3-Phase | 175A at 17V | 100% |
Stick (SMAW) — Duty Cycle Summary
| Input | Rated Output | Duty Cycle |
|---|---|---|
| 240V 1-Phase | 210A at 28.4V | 25% |
| 240V 1-Phase | 110A at 24.4V | 100% |
| 400V / 480V 1-Phase or 400V 3-Phase | 210A at 28.4V | 30% |
| 400V / 480V 1-Phase or 400V 3-Phase | 125A at 25V | 100% |
Industry Applications
The Maxstar 210DX is purpose-built for precision fabrication, petrochemical, food and beverage, dairy, shipboard and aerospace welding applications — wherever premium DC TIG performance and maximum portability are required together.
Frequently Asked Questions:
What is the Miller Maxstar 210DX? The Miller Maxstar 210DX is a premium portable DC TIG and Stick inverter welder weighing 17.2kg, supporting TIG, Pulsed TIG and Stick welding across a full range of single and three-phase input voltages (210–480V) via Auto-Line™ technology. It features Blue Lightning™ HF arc starts, Pro-Set™ controls and a 15A plug fitted as standard.
Does the Miller Maxstar 210DX weld aluminium? No. The Maxstar 210DX is a DC-only machine and does not support AC TIG output. It is designed for DC TIG welding on materials such as stainless steel, mild steel, titanium and other ferrous and non-ferrous metals that do not require AC for oxide cleaning. For aluminium TIG welding, the Miller Dynasty 210 (AC/DC) or Dynasty 300 Multiprocess would be the appropriate choice.
What is the difference between the Miller Maxstar 210DX and the Dynasty 210? The key difference is output type: the Maxstar 210DX is DC-only, while the Dynasty 210 supports both AC and DC TIG — enabling aluminium welding on the Dynasty 210 that is not possible on the Maxstar 210DX. The Maxstar 210DX is lighter (17.2kg vs 21.3kg), comes fitted with a 15A plug, and is the preferred choice for precision DC TIG applications in petrochemical, food and beverage, dairy and shipboard environments where AC output is not required. The Dynasty 210 is the better choice when aluminium TIG capability is needed.
What input voltages does the Maxstar 210DX accept? Via Auto-Line™ technology, the Maxstar 210DX accepts any single or three-phase input voltage between 210V and 480V — including standard 240V single-phase, 415V three-phase and 480V supplies — with no manual linking or reconnection required.
What is Blue Lightning™ on the Maxstar 210DX? Blue Lightning™ is Miller's proprietary high-frequency (HF) arc starter for non-contact TIG arc initiation. It delivers more consistent and reliable arc starts than traditional HF systems, reducing tungsten contamination and improving overall weld quality and operator confidence.
How much does the Miller Maxstar 210DX weigh? The Miller Maxstar 210DX weighs 17.2kg, making it the lightest and most portable machine in the Miller premium DC TIG range.
Does the Maxstar 210DX come with a power plug? Yes. The Maxstar 210DX is fitted with a standard 15A single-phase plug as standard, allowing immediate connection to a standard Australian single-phase supply without requiring a separate plug installation.
