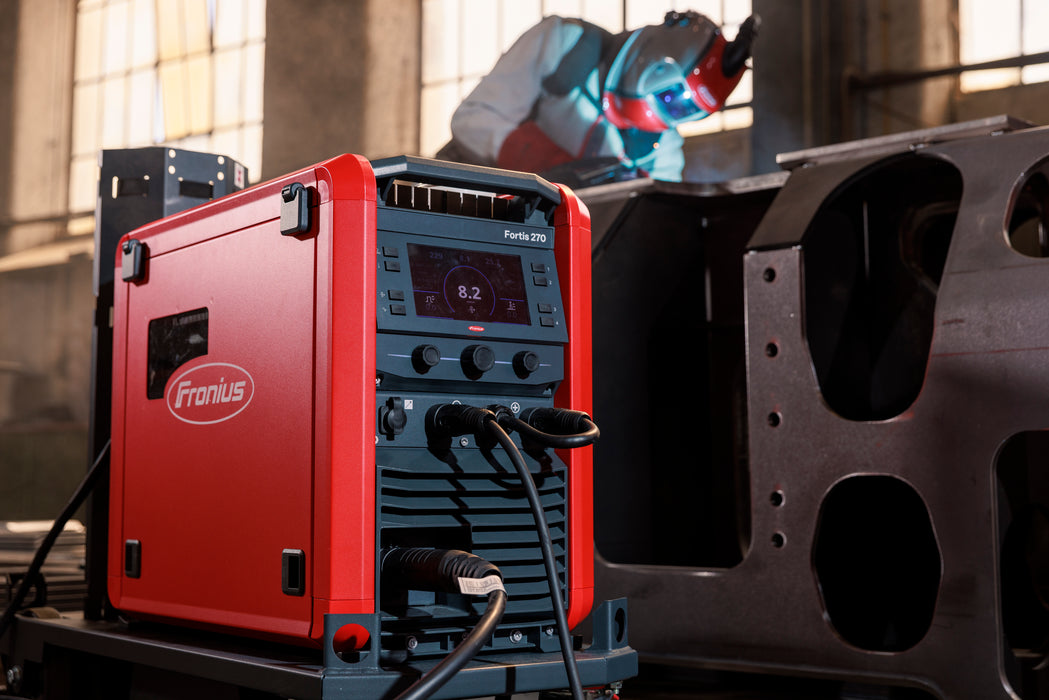

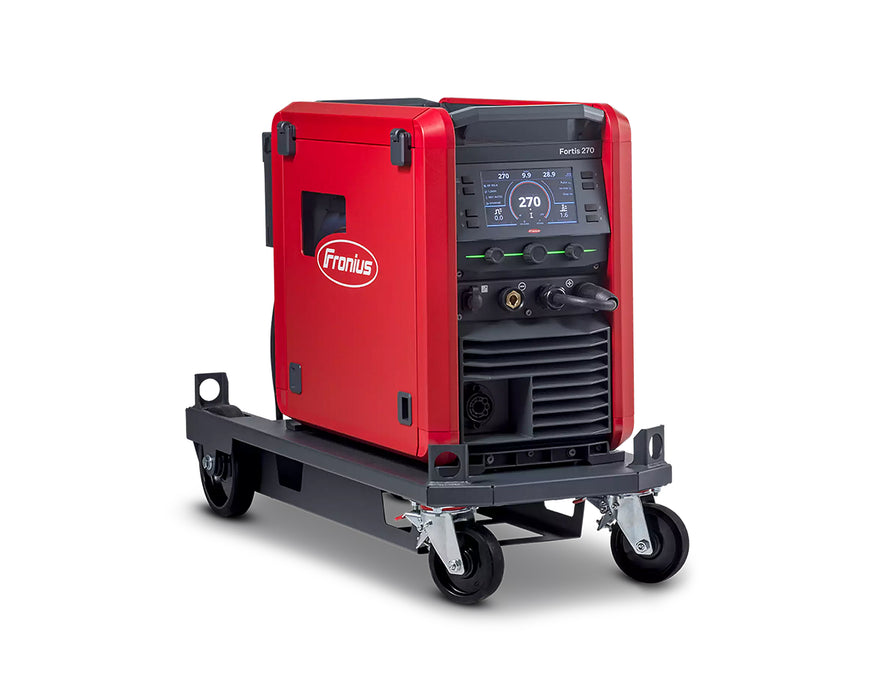

FRONIUS FORTIS 270 COMPACT PULSE MIG FSC
FRONIUS FORTIS 270 COMPACT
Multiprocess Inverter Power Source with Built-In Wire Feeder
The Fronius Fortis 270 Compact is an all-in-one MIG, TIG and MMA welding package built for fabrication workshops, mobile repair work and light-to-medium industrial production. With the wire feeder integrated directly into the power source, there's no separate feed unit to cart around or cable up — just one compact, all-in-one unit ready to run standard synergic MIG, pulse synergic MIG, DC TIG or stick electrode straight out of the box.
Built on Fronius' Fortis platform, the 270 Compact delivers up to 270A of clean inverter output with the arc stability and low-spatter performance the Fronius name is known for. The XT version extends that flexibility further, running on single-phase or three-phase power so it can be dropped into almost any workshop or site setup without a dedicated supply.
Key Features
| Feature | Detail |
|---|---|
| Welding processes | MIG Standard Synergic, MIG Pulse Synergic, Manual (Stick/MMA), TIG DC |
| Wire feeder | Integrated 4-roll feeder — compact single-unit design |
| TIG function | DC Comfort Stop with gas solenoid valve for clean, crater-free arc starts and stops |
| Power input (XT version) | Single-phase & three-phase operation |
| Torch control | Up/Down control and torch light |
| Job memory | 4x Easyjobs as standard, expandable to 999 Jobs (optional) |
| Setup | Weld Wizard guided parameter selection |
| Housing | Compact, low-housing chassis with integrated carry handles |
| Output | Up to 270A |
Available Packages
The Fortis 270 Compact is available in the following gas-cooled package configurations:
| Package | Best suited for |
|---|---|
| Standard/Pulse Package, Gas Cooled | General fabrication and steel welding, with MIG Pulse Synergic available for cleaner, lower-spatter results on thinner sections |
| Aluminium Package, Gas Cooled | Aluminium fabrication, where pulse control and process tuning are set up for consistent aluminium wire feeding and arc performance |
Talk to the QWS team about which package configuration best matches your material mix and workshop application.
Why Choose the Fortis 270 Compact?
One machine, four processes. MIG Standard and Pulse Synergic cover everything from general fabrication through to spatter-sensitive stainless and aluminium work, while DC TIG with Comfort Stop and gas solenoid handles precision root and sheet metal work. Add manual electrode capability and the 270 Compact covers most workshop welding tasks from a single power source.
Faster setup, fewer errors. The Weld Wizard walks operators through parameter selection instead of relying on chart lookups or guesswork, which keeps setup times down and reduces rework — particularly useful in workshops running multiple operators or job types through the one machine.
Built for repeatability. Four Easyjob memory slots come standard for quickly recalling common weld setups, with an optional upgrade to 999 Jobs for workshops running a wide range of materials, thicknesses or WPS requirements.
Flexible power, flexible placement. The XT version's single and three-phase capability means the 270 Compact isn't locked to a single power configuration — it can run on standard workshop power or be moved to sites and vehicles fitted with different supply.
Everything at the torch. Up/Down control and integrated torch light let operators adjust parameters and see the weld pool without stepping back to the front panel, keeping hands on the job in low-light or awkward-access conditions.
Frequently Asked Questions
What welding processes does the Fortis 270 Compact support? It runs MIG Standard Synergic, MIG Pulse Synergic, manual (stick/MMA) electrode, and TIG DC with Comfort Stop — all from the one integrated power source and wire feeder.
Does the Fortis 270 Compact run on single-phase power? Yes — the XT version operates on both single-phase and three-phase mains power, giving it flexibility across different workshop and site power supplies.
What is TIG Comfort Stop? Comfort Stop is a controlled TIG DC arc-stop function paired with a gas solenoid valve, allowing the operator to finish a weld cleanly and control post-flow gas coverage without an abrupt arc cut-off.
How many weld programs can be stored? The Fortis 270 Compact ships with 4 Easyjob memory slots as standard, with an optional upgrade to 999 Jobs for workshops that need to store a larger range of weld parameters.
Is a separate wire feeder required? No — the wire feeder is built into the power source, making this a genuine all-in-one compact package rather than a split system.
What package options are available for the Fortis 270 Compact? It's available as a Standard/Pulse Package (gas cooled) for general steel fabrication, or an Aluminium Package (gas cooled) configured for aluminium wire feeding and welding.
What does the Weld Wizard do? The Weld Wizard is Fronius' guided parameter setup tool, walking the operator through material, process and wire selections to set up correct welding parameters quickly without manual chart referencing.
