HYPERTHERM SMARTSYNC CARTRIDGE 45-85A MAX CONTROL GOUGING
by Hypertherm
Original price
$82.00
-
Original price
$82.00
Original price
$82.00 /
each
$82.00
$82.00
-
$82.00
Current price
$82.00
Excludes GST - GST calculated at checkout
Volume Discounts for ABN / Account holders -
Part No: 428933
Availability: 7 In stock, ready to be shipped!

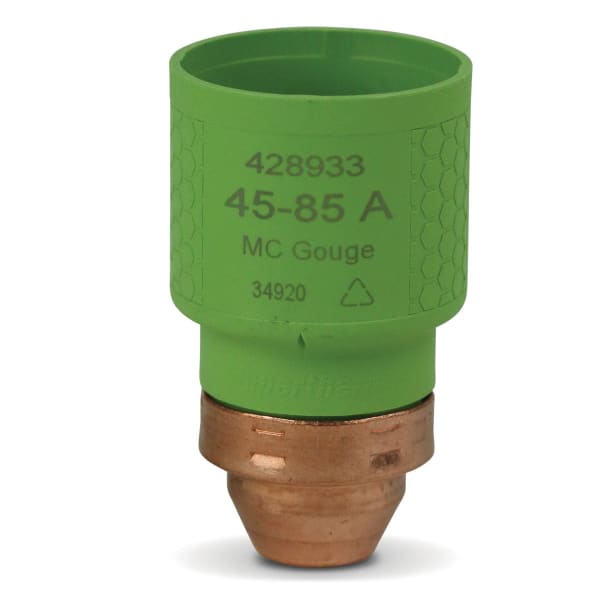

Hypertherm SmartSYNC Cartridge 45–85 A — Max Control Gouging
The Max Control Gouging cartridge is purpose-built for applications demanding greater precision in metal removal. It delivers shallow gouge profiles and is well-suited to light material washing — where control of gouge depth and width is critical. Selecting the cartridge optimised for your specific application is essential for maximum cartridge life and performance.
Key Specifications
- Operating Range: 45–85 A
- Cartridge Type: Max Control Gouging
- Gouge Profile: ShallowPrecise material removal
- Application: Gouging Material washing
- Interface: SmartSYNC®or Duramax® + adapter
- Torch Type: Handheld
Product Highlights
- Shallow gouge profile— delivers controlled, precise gouging rather than aggressive deep metal removal, ideal where depth management matters
- Max Control precision— optimised for light material washing applications where surface quality and control are paramount
- Wide 45–85 A range— flexible operating window across three Powermax SYNC system sizes for versatility across different gouging tasks
- Single-piece cartridge design— all components integrated into one unit, eliminating the need to manage individual electrode, nozzle, and shield parts
- SmartSYNC® intelligence— cartridge communicates directly with the power supply to automate process setup and optimise performance
- Duramax® adapter compatibility— works with existing Powermax45 XP, 65, and 85 systems via the optional cartridge torch adapter
- Genuine Hypertherm OEM— manufactured to Hypertherm's exacting standards for consistent, repeatable gouging performance
Ideal Applications
- Precision Metal Removal - Remove defects, cracks, or weld roots with controlled depth — without over-gouging the base material.
- Light Material Washing - Clean surfaces, remove coatings, or wash light material layers with a controlled, shallow arc profile.
- Weld Preparation & Repair - Back-gouge welds and prepare joints where tight control over profile depth is required for quality welding.
- Structural & Fabrication Rework -Correct fabrication errors and remove material in tight zones where aggressive gouging would cause damage.
System Compatibility
| System | Torch | Interface | Compatible |
|---|---|---|---|
| Powermax45 SYNC® | SmartSYNC® hand torch | Direct cartridge | Yes |
| Powermax65 SYNC® | SmartSYNC® hand torch | Direct cartridge | Yes |
| Powermax85 SYNC® | SmartSYNC® hand torch | Direct cartridge | Yes |
| Powermax45® XP | Duramax® Lock torch | Torch adapter required | Yes |
| Powermax65 / 85 | Duramax® torch | Torch adapter required | Yes |
| Powermax105 SYNC® | — | — | Not compatible |
Note on system compatibility: This cartridge is compatible with Powermax45/65/85 SYNC® systems only — it is not designed for the Powermax105 SYNC®. Running a Duramax® torch on a Powermax45 XP, 65, or 85? You'll also need the Hypertherm Cartridge Torch Adapter. Contact the QWS team for confirmation of compatibility with your specific system.
