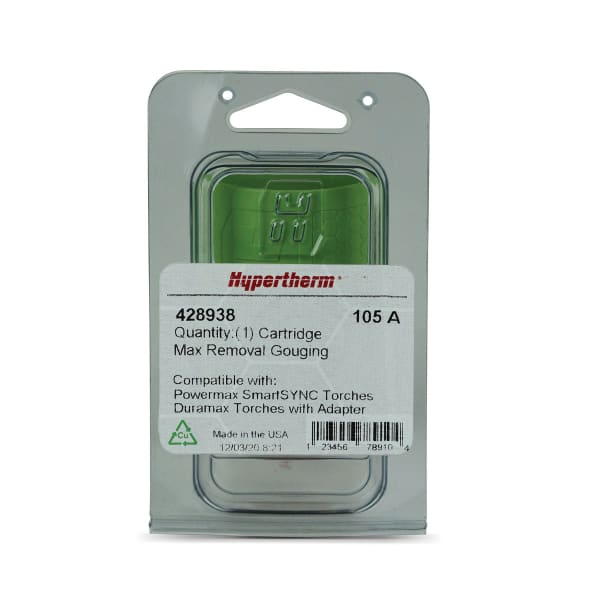

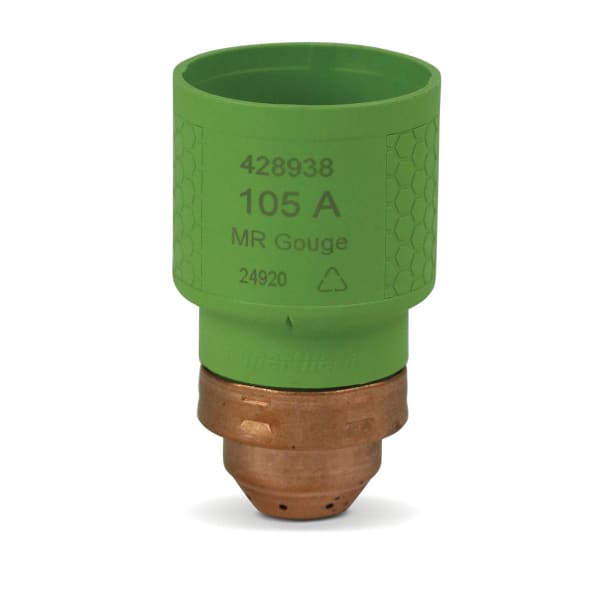

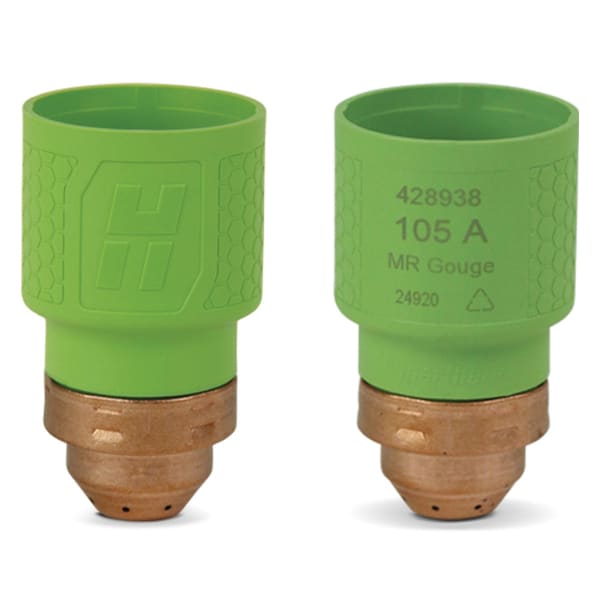

Hypertherm SmartSYNC Cartridge 105 A — Max Removal Gouging
The 105 A Max Removal Gouging cartridge sits at the top of Hypertherm's Powermax consumable range, built for applications demanding maximum metal removal, deep gouge profiles, and extreme material washing. Where the Max Control cartridge prioritises precision and shallow profiles, this cartridge prioritises raw gouging power — compatible exclusively with the Powermax105 SYNC® and Powermax105® systems.
Key Specifications
Max Amperage - 105 A
Operating Range - 45–105 A
Cartridge Type - Max Removal Gouging
Gouge Profile - Deep Aggressive removal
Application - Heavy Extreme washing
System - Powermax105 SYNC® only
Product Highlights
- Deep gouge profile— engineered for maximum penetration and aggressive material removal in a single pass
- Extreme metal washing— handles the most demanding surface washing tasks where shallow profiles simply won't do the job
- 105 A peak power— the highest-amperage cartridge in the Powermax SYNC consumable range, delivering maximum arc force for heavy-duty gouging
- Wide 45–105 A operating range— adjustable from moderate to maximum output to suit varying gouge depths and material thicknesses
- Single-piece integrated cartridge— electrode, nozzle, and shield combined into one unit for fast changeovers without loose components
- SmartSYNC® intelligence— communicates directly with the Powermax105 SYNC® power supply for automatic, optimised process setup
- Duramax® torch adapter compatibility— also works with Powermax105® (non-SYNC) systems via the optional cartridge torch adapter
- Genuine Hypertherm OEM— manufactured to Hypertherm's exact tolerances for reliable, repeatable performance in demanding environments
Ideal Applications
- Heavy Structural Rework: Large-scale metal removal on structural steel, heavy plate, and thick-section components where maximum removal rate matters.
- Extreme Metal Washing: Surface washing of heavy metals, cast components, and thick plate where aggressive arc power is required for fast results.
- Deep Weld Back-Gouging: Back-gouging thick weld joints to sound metal for repair welding, particularly on heavy structural and pressure vessel work.
- Industrial Demolition Prep: Removing fasteners, welds, and material in industrial demolition or reclamation work where speed trumps profile precision.
System Compatibility
| System | Torch | Interface | Compatible |
|---|---|---|---|
| Powermax105 SYNC® | SmartSYNC® hand torch | Direct cartridgePrimary | Yes |
| Powermax105® | Duramax® torch | Torch adapter requiredAdapter needed | Yes |
| Powermax45 / 65 / 85 SYNC® | — | — | Not compatible |
| Powermax45® XP | — | — | Not compatible |
Powermax105 exclusive: This cartridge is designed for use with the Powermax105 SYNC® and Powermax105® only. It is not compatible with Powermax45, 65, or 85 systems. If you need a gouging cartridge for those systems, see the Max Control Gouging- Cartridge #428933. Running a Duramax® torch on a Powermax105? You'll need theHypertherm Cartridge Torch Adapter — the QWS team can assist.
