Product Overview

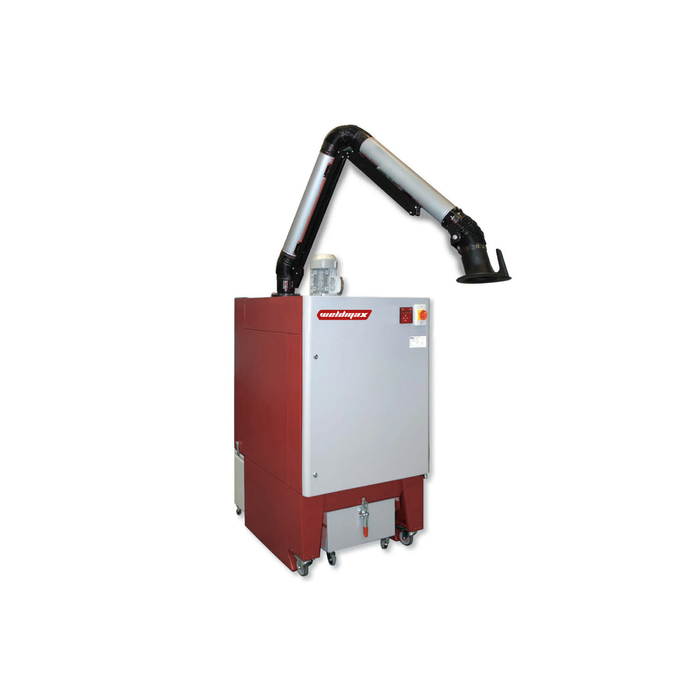

The WELDMAX Fume Extraction Unit (415V, 9-Cartridge configuration) is a high-efficiency, low-noise horizontal cartridge filter unit engineered to capture and filter welding fumes, coarse and fine dust, and light chip particulate at the source. It's a true plug & play system — a single electrical connection is all that's needed for immediate operation — built for continuous-duty use in busy fabrication shops, welding bays, and metalworking facilities.

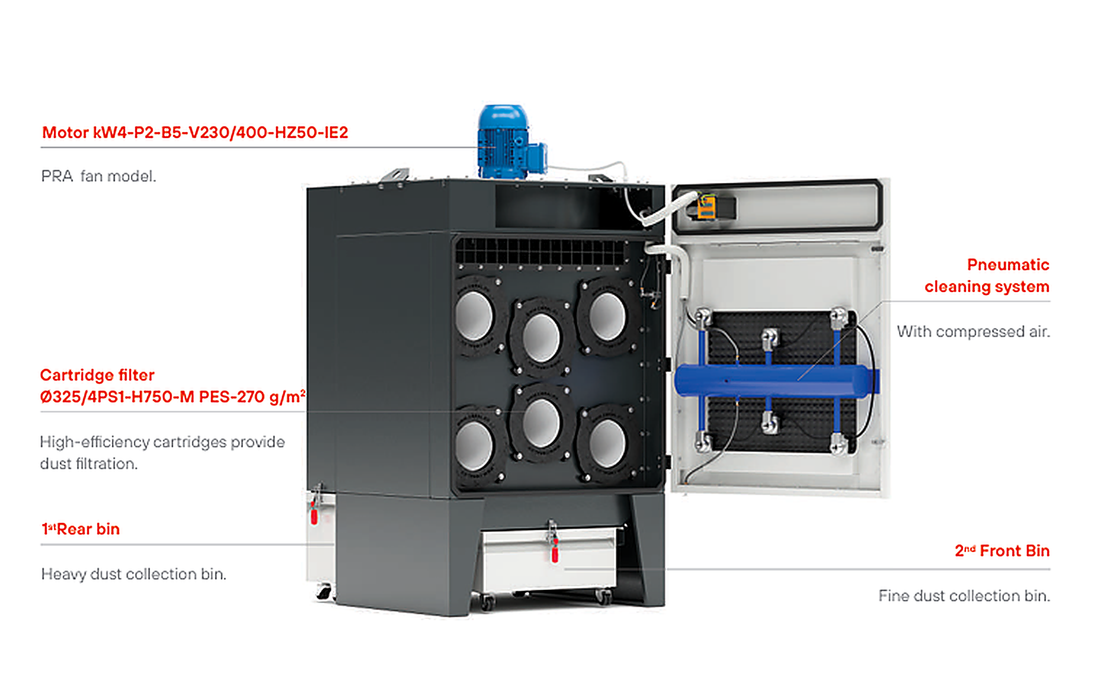

Air is drawn into a pre-chamber where the bulk of coarse dust and heavier particulate is separated out and dropped into the first collection bin. The remaining fine particulate then passes through the horizontal M-class polyester cartridge bank, which is cleaned automatically by a compressed-air pulse-jet system, before being expelled through the high-performance fan on top of the unit. The finest residual dust settles into a second collection bin for easy, low-mess disposal.

The WELDMAX fume extraction range is available in 4, 6, and 9 cartridge configurations, so you can size the unit to your workshop's airflow and dust-load requirements — the 9-cartridge version featured here offers the largest filtration surface area and highest extraction capacity in the standard range, making it well suited to multi-operator welding bays or larger workshop floors.

Key Features

• 9 High-Capacity Horizontal Cartridge Filters – Ø325mm polyester (M-PES) cartridges, 270g/m², providing 108m² of total filtration surface for effective capture of fine welding fume and dust.
• 415V Three-Phase Power – Robust electrical connection suited to industrial workshop environments and heavy-duty cycles.
• High-Performance Integrated Fan – Delivers a nominal airflow of up to 7,500 m³/h with noise levels of 83–85 dB (reducible to 78–79.5 dB with the optional soundproofing plenum).
• Automatic Pneumatic Cartridge Cleaning – Compressed-air pulse-jet system (max 8 bar tank pressure) knocks dust off the cartridge media back into the collection bins, maintaining filtration efficiency and reducing manual maintenance.
• Dual Dust Collection Bins – Front and rear bins capture coarse and fine dust separately for straightforward, low-mess disposal.
• Horizontal Cartridge Layout – Easy access for quick cartridge inspection and maintenance without a large service footprint.
• M-Class Filtration – Tested to IFA-BGIA (Bonn, Germany) standards, filtering out dust with AGW values ≥ 0.1mg/m³ at >99.9% efficiency.
• Available in 4, 6 or 9 Cartridge Configurations – Scalable across the WELDMAX range to match airflow needs, from smaller single-operator setups up to high-volume multi-station extraction.
• Durable Industrial Construction – Heavy-gauge steel housing designed for continuous industrial use.

Typical Applications

• Welding bays and fabrication workshops
• Multi-station MIG/TIG/arc welding cells
• Metal fabrication and sheet metal shops
• Grinding and finishing stations
• Automotive and heavy equipment repair facilities
• Manufacturing plants requiring centralised fume and dust extraction

Why Choose the WELDMAX 9-Cartridge 415V Unit

For workshops that need more extraction capacity than an entry-level 4- or 6-cartridge unit can provide, the WELDMAX 9-cartridge system offers the largest filtration surface area in the standard range — translating into stronger sustained suction and longer intervals between maintenance. It's engineered to keep welding fume and dust levels under control across busier or larger work areas, supporting both air quality and workplace safety compliance.

Specifications — WELDMAX 9-Cartridge / 415V

This unit is also available in 4- and 6-cartridge configurations to suit smaller workshops or lighter-duty applications — contact us for details on the full WELDMAX fume extraction range.

Product image colour is a representation only and is subject to change.
