WELDMAX ATEX-COMPLIANT FUME & DUST EXTRACTOR
WELDMAX ATEX-COMPLIANT FUME & DUST EXTRACTOR
CE II 3DST1 Certified — Independently Tested to Directive 2014/34/EU (ATEX)
The WELDMAX ATEX-Compliant Fume & Dust Extractor is engineered for industrial environments where flammable or explosive dusts and vapours pose a fire or explosion risk. Built to CE II 3DST1 classification and independently tested in accordance with Directive 2014/34/EU (ATEX), this horizontal cartridge filter unit is suitable for the extraction and filtration of welding fumes and sanding dust from non-metallic products used in mechanical industry processes.
Important: This unit is rated for organic and inorganic dust — it is NOT suitable for metallic dust. Please confirm your application's dust type before ordering, or contact us to discuss the right extraction solution for combustible metal dust.

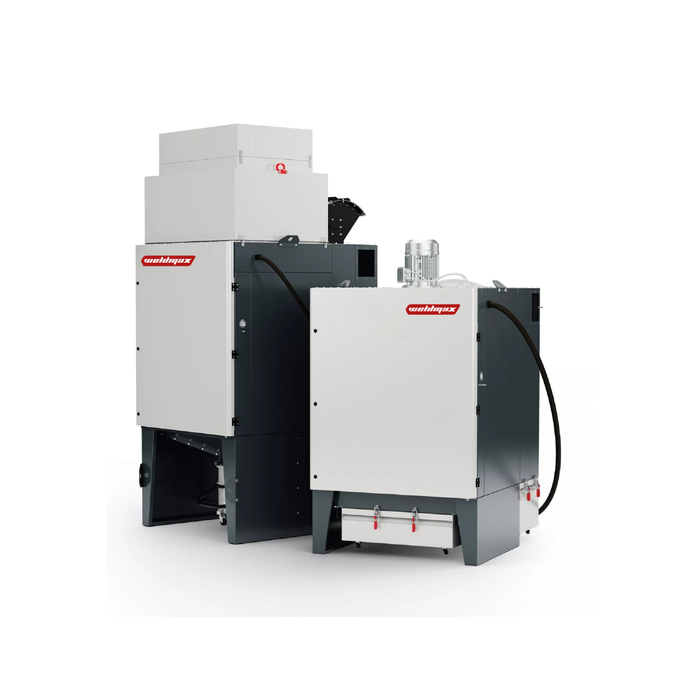

The WELDMAX ATEX range is a true plug & play solution requiring no complex installation, and is available in 4, 6, and 9 cartridge configurations to suit different airflow and workshop size requirements, with both Indoor and Outdoor variants, and an optional TRU single-hopper configuration for easy, quick discharge of filtered dust.
Key Features
- ATEX Certified (CE II 3DST1) – Independently tested to Directive 2014/34/EU, suitable for environments with organic and inorganic dust at risk of fire or explosion.

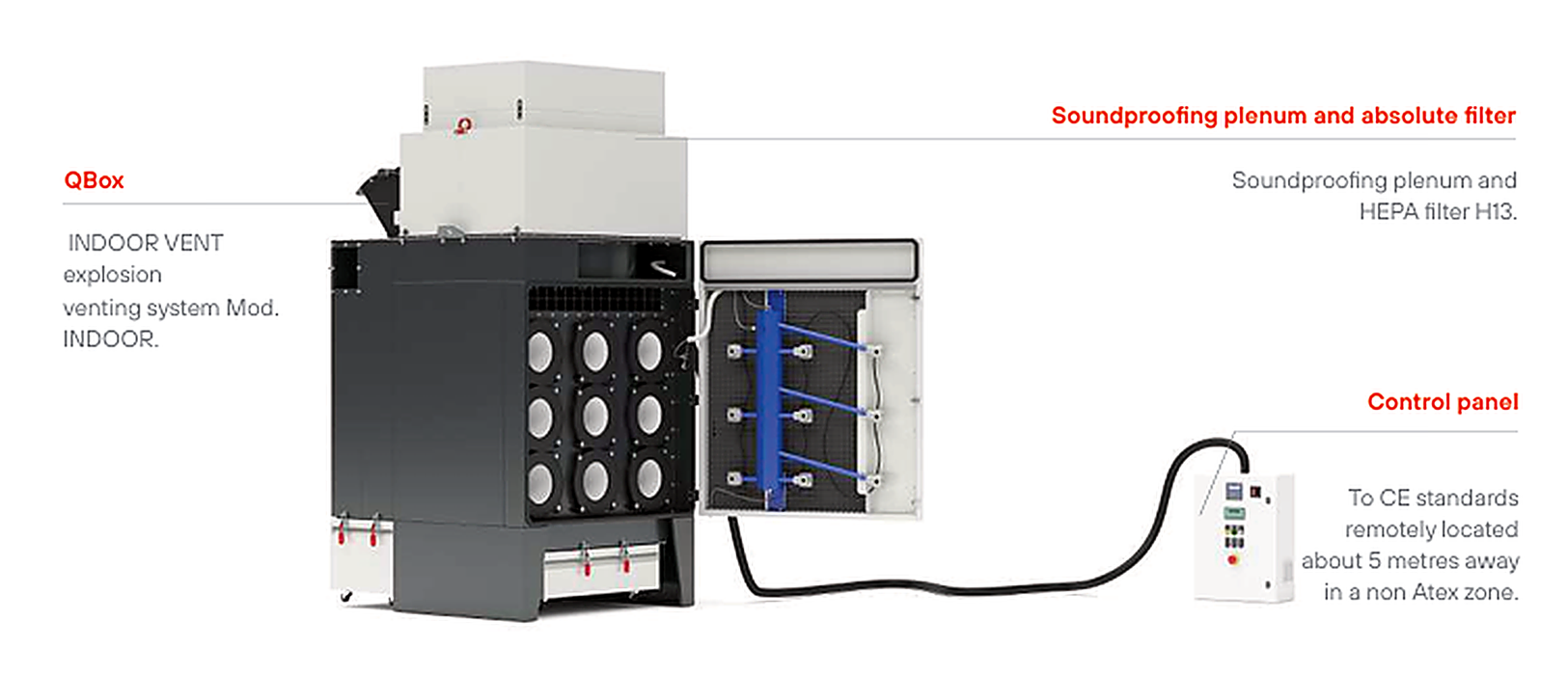

- ATEX-Rated Motor & Electricals – ATEX-certified motor, ATEX coil and matrix solenoid cable, with the control panel separated from the machine on 5m of pre-wired cable, located outside the ATEX zone.
- Multi-Stage Pre-Chamber Filtration – Dusty air passes through a first and second pre-chamber where the bulk of fumes and coarse dust is separated and deposited into dual collection bins, before fine filtration through high-efficiency M-class cartridges.
- Oversized Inlet with Spark Extinguishing System – Reduces the risk of ignition sources reaching the filter media.
- Automatic Pneumatic Cartridge Cleaning – Compressed-air cleaning system keeps cartridges clear and filtration performance consistent.
- Explosion Venting Panel – Fitted as standard for safe pressure relief; Indoor units include an INDOOR-VENT explosion venting system in place of external venting.
- Double-Reinforced Dust Collection – Heavy-duty collection bins with dust separation grille on the front bin for safe, low-mess disposal.
- Indoor & Outdoor Configurations – Outdoor units are built for external siting (weather protection recommended); Indoor units include a soundproofing plenum and HEPA H13 filter (H14 optional) for safe air return within the building.
- TRU Single-Hopper Option – Combines coarse and fine dust into a single hopper and collection bin for faster, simpler discharge.
Typical Applications
- Welding fume and sanding dust extraction from non-metallic materials in mechanical/fabrication industries
- Facilities handling combustible organic or inorganic dust
- Workshops requiring ATEX Zone-compliant air filtration equipment
- Environments where standard (non-ATEX) extraction units would not meet fire/explosion safety requirements
Why Choose the WELDMAX ATEX-Compliant Extractor
Where extraction equipment handles dust or fumes with a fire or explosion risk, standard filtration units simply aren't rated for the job. The WELDMAX ATEX-Compliant range pairs certified explosion-protection engineering — ATEX motor, spark extinguishing inlet, explosion venting, and pre-wired remote control panel — with the same high-efficiency horizontal cartridge filtration as the standard WELDMAX range, so you get compliant, reliable extraction without compromising on airflow performance.
Specifications (Outdoor / Indoor — by Cartridge Configuration)
| Specification | 4 Cartridge | 6 Cartridge | 9 Cartridge |
|---|---|---|---|
| Nominal Air Flow | 2,000–3,000 m³/h | 4,000–5,500 m³/h | 6,500–7,500 m³/h |
| Filtering Surface | 48 m² | 72 m² | 108 m² |
| Power | 2.2–3 kW | 4–5.5 kW | 7.5–11 kW |
| Cartridge Type | M PES/AX EXAM Accredited (antistatic) | Same | Same |
| Noise Level – Outdoor | 76–78 dB | 80–81 dB | 83–85 dB |
| Noise Level – Indoor | 68–71 dB | 72–74 dB | 76–78 dB |
| Total Weight – Outdoor | 450–460 kg | 550–570 kg | 752–800 kg |
| Total Weight – Indoor | 530–545 kg | 600–620 kg | 874–925 kg |
| Tank Pressure | Max 8 Bar | Max 8 Bar | Max 8 Bar |
*Available in 4, 6, and 9 cartridge configurations, in both Indoor and Outdoor formats, with an optional TRU single-hopper variant — contact us to confirm the right configuration for your application.
*Product image colour is a representation only and is subject to change.
