ALFI WALL MOUNTED WF-ECO JET PULSE WALL-FILTER 3-PHASE

No reviews
by ALFI
Part No: P-547

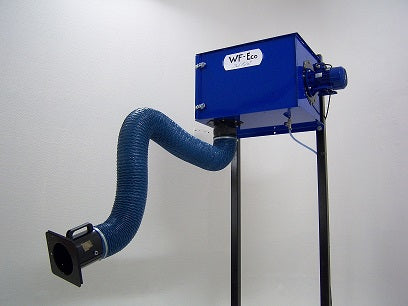

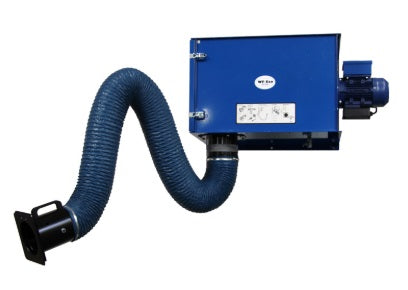

WF-ECO Jet Pulse Wall Mount Fume Extractor

Wall mounted filtered welding fume extractor

WF-Eco Jet Pulse filter has a very efficient built in compressed air cleaning system. In a few minutes it cleans the built in filter cartridge. Just open the door to empty the dust bin!

Flexible & Strong
• WF-Eco Jet Pulse is robustly built and with aluminium impeller.
• A 1.5m, 2m or 3m Flexi Extraction Arm can be mounted directly to the bottom of the unit.
• Alternatively the WF-Eco can be ducted to the collection point or machinery / equipment.
• The Flexi Arms are designed with the most modern parallelogram technology which makes them extremely flexible and position stable.

Welding Fume & Dust Filter
• The most efficient and economical solution for welding smoke and dust extraction, over 1000m³/h through the hood and with aluminium impeller.





Key Features

Easy to install - the WF-ECO has 4 mounting holes on the back of the unit to fasten to the wall

Easy to Clean - the WF-ECO JET PULSE has compressed air fitting to remove the dust from the filter - whilst keeping the door shut during cleaning

Easy to Empty - A large tray in the bottom to collect the dust particles - no tools required to empty the dust tray - safe and secure.

Efficient filtration - built-in efficient filter with long-life filter cartridge. The cartridge can be easily cleaned or changed when required.

Affordable and useful - the WF-ECO is simple, effective and efficient, with a choice of hose lengths and applications.

What's Included

Filtered extraction unit

High performance fan

360 degree base mounted arm system

Built-in filter and cartridge

4m electrical cable

ORDER ARMS SEPERATELY

PN: P-052 ALFI Internally Supported Arm 2mtr 160mm dia for wall mounted fans / filters

PN: P-053 ALFI Internally Supported Arm 3mtr 160mm dia for wall mounted fans / filters

PN: P-054 ALFI Internally Supported Arm 4mtr 160mm dia for wall mounted fans / filters



Specifications

Motor power: TBA

Air movement: 1'000m³/h.

Input Power: 1-Phase, 240V, 50 Hz (3phase 415V also available)





Typical Environments

Welding

Working in confined spaces

Service and repair work

Manufacturing and Maintenance workshops



Request a quote or more information.
