Plymoth P-Max Fan 0.75kW, 1 or 3 Phase

Overview

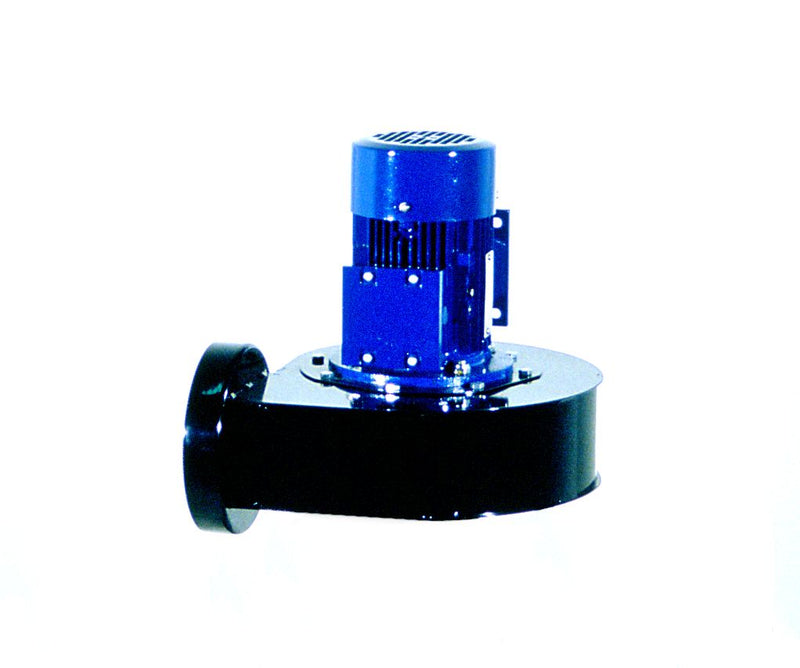

The Plymoth P-Max Fan (P-012) is a 0.75kW centrifugal extraction fan built to pull smoke, weld fume and light dust away from the point of work. It's the fan half of a source-capture welding fume system — pair it with a Plymoth extraction arm and hood, and it draws contaminated air straight from the welder's breathing zone before it spreads through the workshop. Fitting flexible extraction arms of 160mm or 200mm diameter (1.5–9m length), it's a straightforward way to bring at-source local exhaust ventilation (LEV) into a fabrication shop, school workshop or industrial site — and a practical step toward meeting Safe Work Australia's tightened welding fume Workplace Exposure Standards (WES).

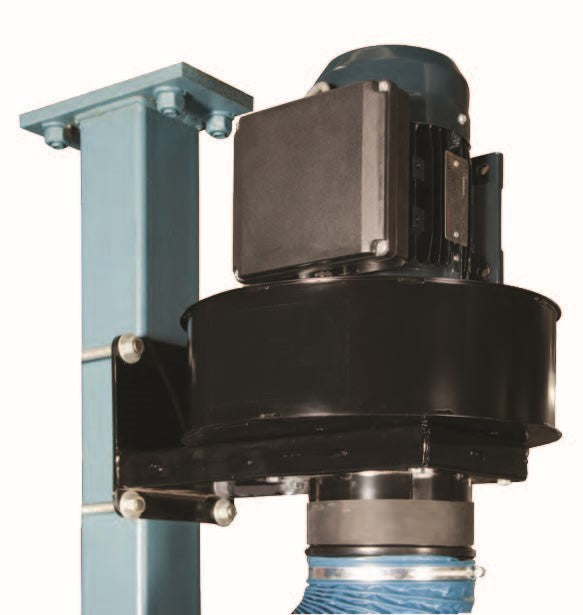

Wall- or pole-mounted, the P-012 is available in 1-phase (240V) or 3-phase (415V) power supply, giving flexibility for sites without 3-phase access. It runs free inlet/outlet (FIO), so it can exhaust directly into the workshop without discharge ductwork — no need for the ducted-only turbo variants (P-013/P-015) unless your setup specifically calls for ducted discharge.

Key features

• 0.75kW motor, available in 1-phase or 3-phase power supply
• 2100 m³/hr extraction rate — enough for a single welding station with a properly sized arm and hood
• Free inlet/outlet (FIO) — can be run free-blowing, no ductwork required
• 200mm round outlet for optional ducted discharge if needed
• Wall or pole mount, fits directly onto Plymoth extraction arm brackets or with a separate mounting bracket
• 65 dBA noise level
• Supports compliance with Australia's 2024 welding fume exposure standards

Technical specifications

What's included

• P-Max fan, fan case and motor

Not included: plug and lead, extraction arm (ordered separately to suit required length and diameter), mounting hardware beyond the standard bracket fit.

Typical applications

Welding fabrication and workshops, schools and trade training facilities, grinding and soldering stations, and other environments needing at-source fume, smoke or light dust extraction.

Compliance note

Local exhaust ventilation at the point of welding is one of the most effective ways to reduce a worker's exposure to weld fume, which is now classified as a Group 1 human carcinogen. A correctly specified extraction arm and fan combination — like the P-012 paired with a suitably sized Plymoth arm — is a practical engineering control for meeting current WES obligations for manganese and welding fume more broadly.

Compare P-Max fan options

A mobile version (fan on a wheeled frame with handle, inlet spigot, isolator and 4m cable — P-324) is also available for workshops needing a portable extraction point.

Frequently Asekd Questions

Does the P-012 need to be ducted? No. The P-012 is a free inlet/outlet (FIO) fan, so it can exhaust directly into the workshop without discharge ductwork. It can still be ducted via its 200mm outlet if the site requires it.

Is the P-012 available in single phase? Yes — the P-012 is available in either 240V single-phase or 415V three-phase power supply, at the same 0.75kW motor rating and 2,100 m³/hr airflow.

What's the difference between the P-012 and the P-013? Same 0.75kW motor and 2,100 m³/hr airflow, but the P-012 runs free inlet/outlet (no ductwork needed), while the P-013 is a turbo variant that must be ducted and is 3-phase only.

What size extraction arm does the P-012 need? It's designed to work with Plymoth flexible extraction arms in 160mm or 200mm diameter, available in lengths from 1.5m to 9m depending on the reach required at the workstation.

Is the P-012 suitable for a single welding bay or a whole workshop? It's sized for a single extraction point (one arm and hood). For multiple welding stations, each bay typically needs its own fan and arm, or a larger centralised ducted system — talk to QWS about sizing a multi-point setup.
