PLYMOTH 3MT X 160MM INT/SUP ARM SUITS CEILING MOUNT FILTER
Plymoth Flexi Extraction Arm — Ø160mm x 3m
Overview

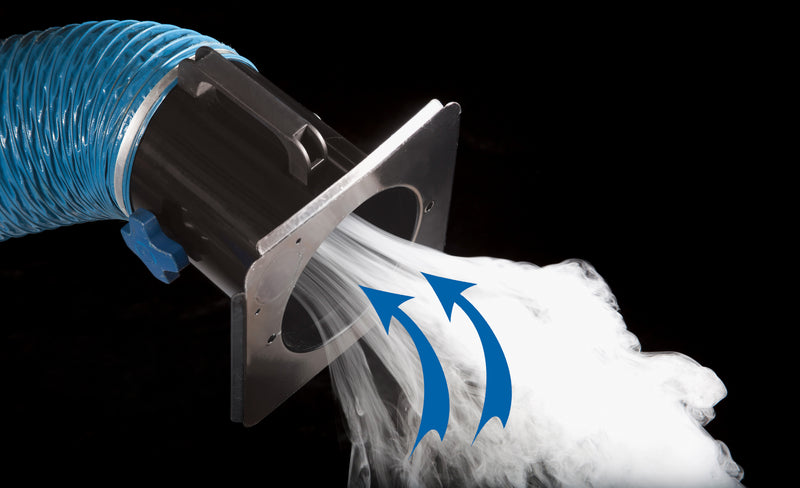

The Plymoth Flexi Extraction Arm (P-053) is a hanging, self-supporting articulated fume extraction arm designed to pair with Plymoth's WF-Eco wall-mounted filtered fume extractor (P-549/P-547). At 160mm diameter and 3 metres in length, it gives a 3-metre working radius with a full 360° swivel, letting you position the hood exactly where fume is rising at the weld joint.

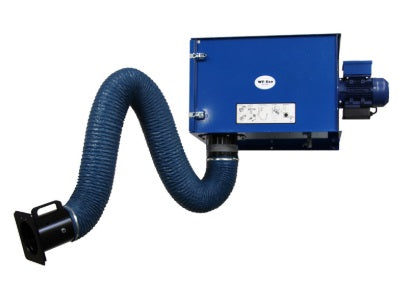

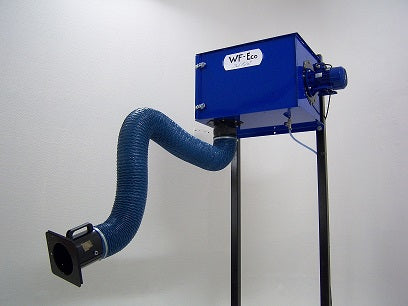

The arm screws directly to the underside of the WF-Eco filter housing — no extra wall drilling required — so once the filter unit is mounted, fitting the arm is a straightforward final step. Together, the WF-Eco unit and a correctly sized Flexi Extraction Arm form a complete at-source local exhaust ventilation (LEV) system, supporting compliance with AS/NZS ISO 21904 and Australia's tightened welding fume Workplace Exposure Standards (WES).
Key features
- 160mm diameter, 3m length — 3-metre working radius from the mounting point
- 360° swivel, self-supporting articulated design that holds position once set
- Hanging mount — attaches directly to the underside of the WF-Eco filter housing, no additional wall holes needed
- Designed specifically to pair with Plymoth's WF-Eco wall-mounted filtered extractor (P-549 single-phase / P-547 three-phase)
Specifications
| Spec | Detail |
|---|---|
| Part number | P-053 |
| Diameter | 160mm |
| Length | 3 metres |
| Swivel | 360° |
| Mounting | Hanging, attaches to WF-Eco filter housing underside |
Compatibility
Designed for use with the Plymoth WF-Eco Wall Mounted Filtered Fume Extractor (P-549, single-phase, or P-547, three-phase).
Compare Flexi Extraction Arm lengths
| Model | Diameter | Length |
|---|---|---|
| P-052 | 160mm | 2 metres |
| P-053 (this product) | 160mm | 3 metres |
Frequently Asked Questions
What unit does the P-053 arm fit? It's designed to pair with the Plymoth WF-Eco wall-mounted filtered fume extractor, available as the single-phase P-549 or three-phase P-547.
What's the difference between the P-052 and P-053 arms? Both are 160mm diameter hanging Flexi Extraction Arms for the WF-Eco unit — the P-052 gives a 2-metre working radius, while the P-053 extends that to 3 metres.
Does the arm need separate wall mounting? No — it attaches directly to the underside of the WF-Eco filter housing once that's wall-mounted, so no additional wall drilling is needed for the arm itself.
Is the arm self-supporting? Yes — it's a self-supporting articulated design, so once positioned it holds its place at the weld joint without needing to be held or clamped.
