ELECTRODE 7016 LOW HYDROGEN 4.0MM

by Hyundai
Original price $8.40 - Original price $8.40
Original price
$42.00 / Unit
$8.40 / kg
$8.40
$8.40 - $8.40
Current price $8.40
Excludes GST - GST calculated at checkout

Volume Discounts for ABN / Account holders -

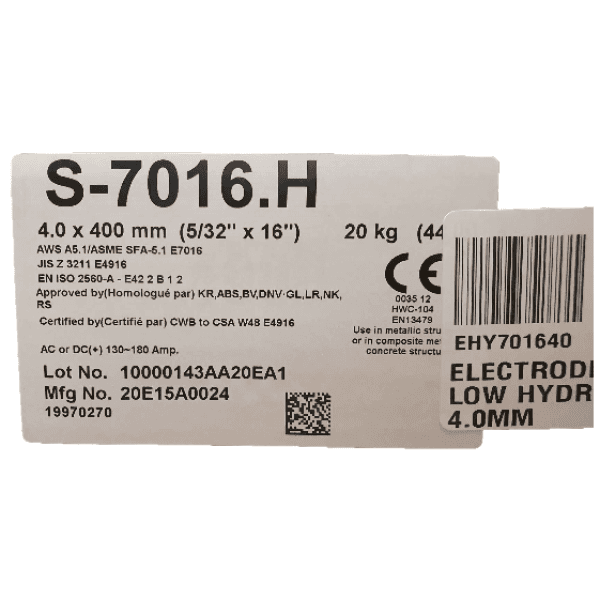

Part No: EHY701640

Availability: 137 In stock, ready to be shipped!

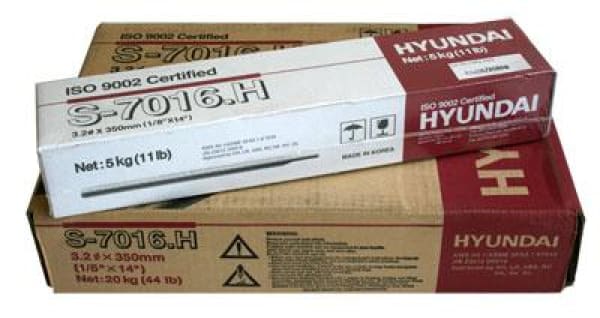

Electrode 7016 Low Hydrogen 4.0mm - Hyundai S-7016.H Low Hydrogen Electrodes

The Hyundai S-7016.H Low Hydrogen Electrode is designed for welding high tensile steel applications, including bridges, buildings, shipbuilding, high-pressure vessels, and rolling stock. Engineered for durability and performance, the S-7016.H electrode offers exceptional arc stability, crack resistance, and X-ray performance, making it a trusted choice for challenging welding projects.

Key Features and Usage Characteristics

  • Soft Stable Arc: Ensures smooth, reliable operation.
  • Smooth Appearance: Creates visually appealing welds.
  • No Undercut Formation: Protects against weld defects.
  • Good Fluidity and Slag Removability: Enhances welding ease and productivity.
  • Excellent Mechanical Properties: Offers robust strength and durability.
  • Exceptional Crack Resistance and X-Ray Performance: Ideal for critical and high-tensile applications.

Usage Notes

To achieve optimal performance:

  1. Pre-dry Electrodes: Heat to 300–350°C (572–662°F) for 60 minutes before use.
  2. Arc Strike Method: Use back-stepping or arc striking on a small steel plate to prevent blow holes.
  3. Wind Protection: Use a windscreen to shield the weld area from strong winds.

Welding Positions

Suitable for multiple welding positions:

  • Flat (F)
  • Horizontal Vertical (HV)
  • Vertical Up (VU)
  • Overhead (OH)

Operating Current

Compatible with AC or DC± currents for flexibility in various applications.

Chemical Composition of All Weld Metal (%)

Element C Si Mn P S
Value 0.07 0.55 1.13 0.017 0.011

Mechanical Properties of All Weld Metal

Property Y.S (N/mm²) T.S (N/mm²) Elongation (%) Temp (°C/°F) CVN-Impact Value (J/ft·lbs)
Value 490 (71,100) 600 (87,100) 30.3 -29 (-20) 80 (59)

Approvals and Certifications

The S-7016.H electrode meets certification standards for KR, ABS, LR, BV, DNV, GL, and NK, underscoring its reliability and quality in industrial applications.

Availability

This product is priced per kilogram (kg). Minimum purchase quantity is as indicated in the "Pack Qty."
