ELECTRODE 7016.H LOW HYDROGEN 2.6MM

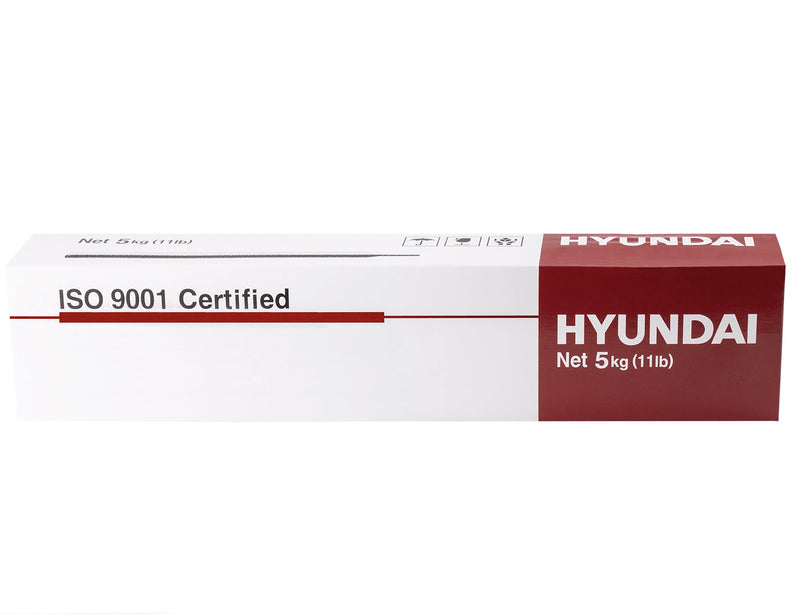

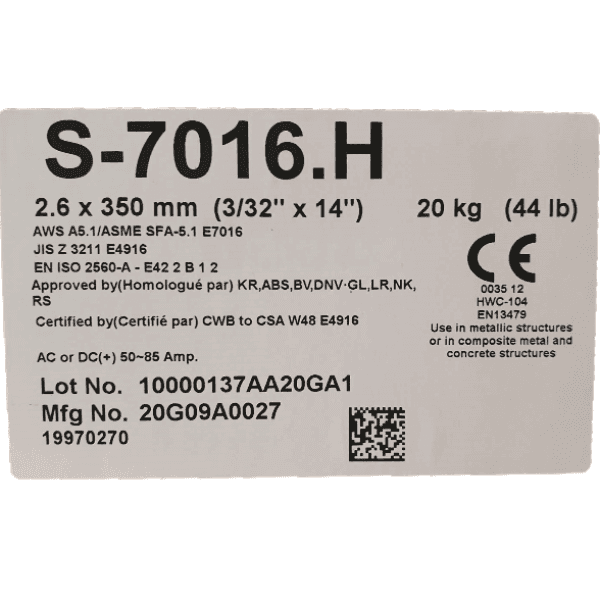

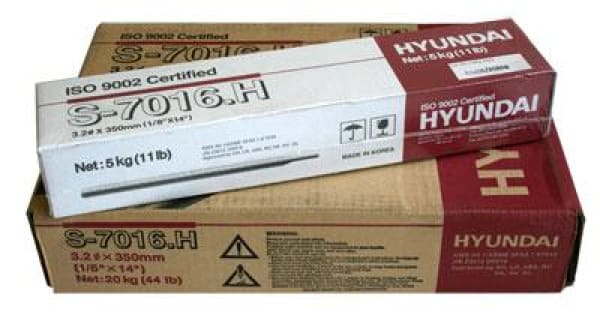

Hyundai S-7016.H Low Hydrogen Electrodes
S-7016.H can be used for welding of high tensile steel, such as bridges, buildings, shipbuilding, high pressure vessels and rolling stock.

Characteristics on usage

• Soft stable arc
• Smooth appearance
• No undercut formation
• Good fluidity and removability of slag
• Good mechanical properties
• Excellent crack resistance and X-ray performance


Notes on Usage

• Dry the electrodes at 300~350°C (572~662°F) for 60 minutes before use.
• Adopt back step method or strike the arc on a small steel plate prepared for this particular purpose to prevent blow hole at the arc starting.
• Use wind screen against strong wind.

Welding Position

• F, HV, VU, OH

Current

• AC or DC±

Typical Chemical Composition of all weld metal (%)
 C       Si       Mn       P       S
 .07       .55       1.13       .017       .011

Typical Mechanical Properties of all weld metal
 Y.S N/mm2 (lbs/in2)       T.S  N/mm2 (lbs/in2)      EL.  (%)       Temp.   °C (°F)       CVN-Impact Value   J (ft . lbs)
 490 (71,100)       600 (87,100)       30.3       -29 (-20)       80 (59)

Approval
KR, ABS, LR, BV, DNV, GL, NK
This product is priced “per KG”. The minimum quantity available to purchase is shown in the "Pack Qty".
