SHEAR CONNECTOR STUD 19X100MM WITH SHIELDS - PER 100
Volume Discounts for ABN / Account holders -
Availability: Low inventory, stocking up soon!
Product Overview

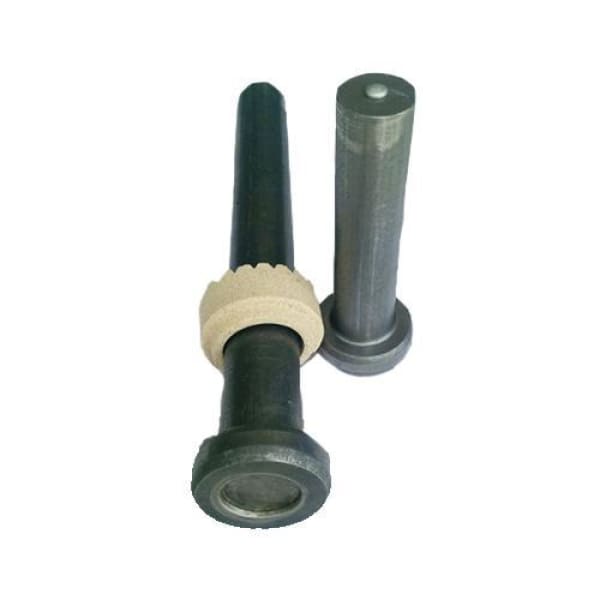

Engineered for composite steel-concrete construction, these 19mm x 100mm headed shear connector studs (also known as shear studs, Nelson studs, or welded shear connectors) provide reliable mechanical bonding between structural steel beams and concrete slabs. Supplied complete with ceramic ferrules (shields) for arc stud welding, this pack of 100 units is ideal for composite floor systems, bridge decks, and structural steel fabrication projects.
Key Specifications
| Specification | Detail |
|---|---|
| Shank Diameter | 19mm |
| Length | 100mm |
| Pack Quantity | 100 pieces |
| Material | Low carbon steel (cold-drawn) |
| Weld Method | Arc stud welding (drawn arc process) |
| Includes | Ceramic ferrules/shields |
| Standard Compliance | AS/NZS 1554.2, ISO 13918, EN 13918 (verify per region) |
| Finish | Mill finish / as-welded |
Features & Benefits
- High Tensile Strength – Manufactured from cold-drawn low carbon steel for consistent load transfer and shear resistance in composite beam-slab assemblies.
- Ceramic Shield Included – Each stud is supplied with a ceramic ferrule to shield the weld pool, ensuring a clean, full-strength weld and reducing spatter and porosity.
- Composite Construction Ready – Ideal for use in composite metal deck flooring, steel-concrete composite beams, and structural bridge girders.
- Consistent Dimensional Accuracy – Precision-manufactured 19mm diameter x 100mm length ensures uniform embedment depth and reliable performance across large-scale projects.
- Fast Installation – Compatible with standard stud welding guns for rapid, single-pass installation, reducing on-site labor time versus bolted connections.
- Bulk Pack Convenience – Supplied 100 per pack for efficient site logistics, inventory management, and cost-per-unit savings on large builds.
Common Applications
- Composite steel beam and concrete slab construction
- Composite metal decking systems
- Bridge deck and girder fabrication
- Multi-storey commercial and industrial building frames
- Structural steel fabrication and precast composite panels
Why Choose This Shear Connector Stud
Shear connector studs are critical to transferring longitudinal shear forces between steel beams and concrete slabs, preventing slippage and ensuring the two materials act as a single composite structural unit. This 19x100mm size is one of the most widely specified dimensions in structural engineering drawings for mid-to-heavy composite loading applications, making it a staple item for steel fabricators, structural contractors, and construction suppliers.
