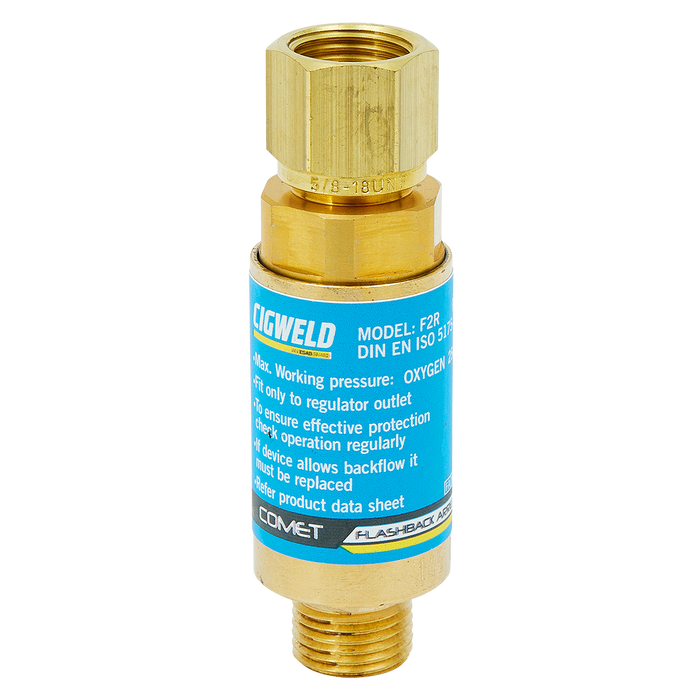

CIGWELD FLASHBACK ARRESTOR OXY F2R REG MOUNTED
Volume Discounts for ABN / Account holders -
Availability: Low inventory, stocking up soon!

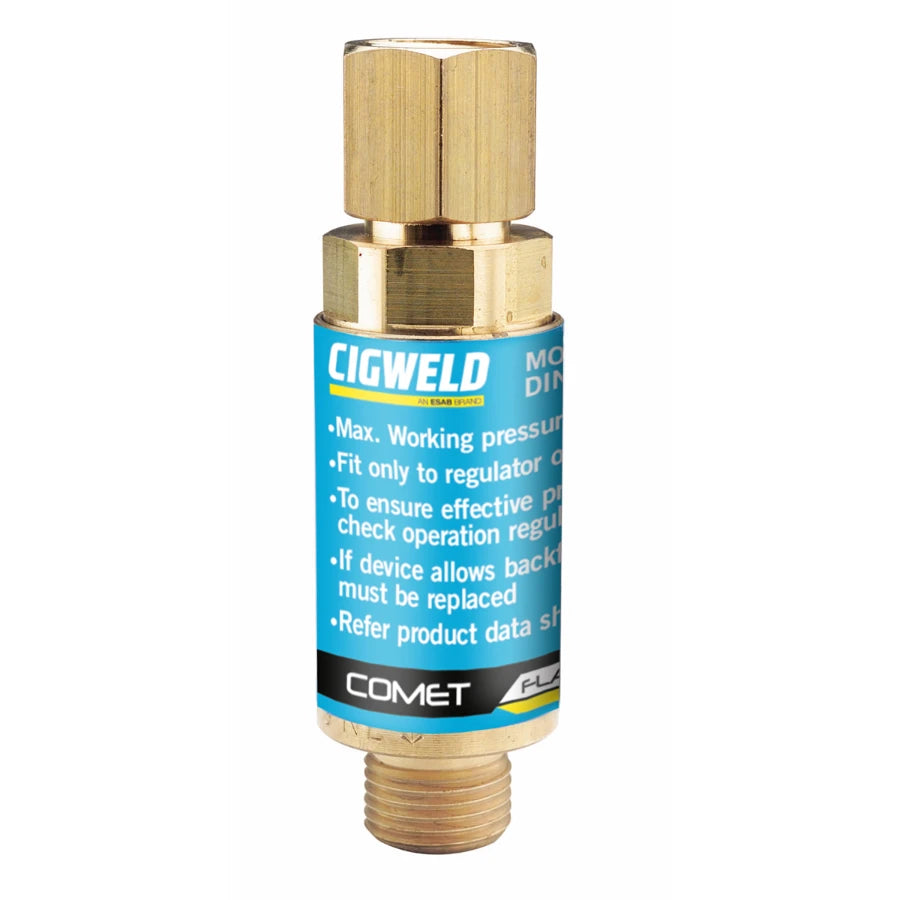

CIGWELD COMET F2R Flashback Arrestor – Oxygen (Regulator Outlet)
Essential Safety Device for Medium-Flow Oxy-Fuel Systems
The CIGWELD COMET F2R Flashback Arrestor is designed for installation at the outlet of regulators or pipelines in medium-flow oxy-fuel setups. It provides comprehensive protection against flashbacks, reverse flow, and overheating—safeguarding both operator and equipment reliability.
Key Features & Benefits
- Multi-Stage Safety Protection – Combines a non-return valve, a stainless-steel flame arrestor, and a temperature-activated cut-off valve to stop dangerous flashbacks in their tracks.Cigweld
- Medium-Flow Capability – Engineered for mid-level gas demands, perfect for most industrial cutting, welding, and heating applications.Cigweldblackwoods.com.au
- Built-In Inlet Filter – Prevents particulates from contaminating and clogging the gas system.Cigweld
- Temperature-Activated Cut-Off – At approximately 90 °C, this valve automatically stops gas flow to prevent overheating; it’s not resettable.Cigweld
- Regulatory Compliance – Meets all major safety standards: AS4603, EN730/DIN 8521, ISO 5175 Class I, and AS4267-1995 fittings, plus UL certification and BAM testing.Cigweld+1Gentronics
Technical Specifications
| Feature | Specification |
|---|---|
| Flow Rating | Medium-flow applications |
| Internal Safety Elements | Non-return valve, flame arrestor, thermal cut-off |
| Inlet Feature | Dust filter |
| Cut-Off Activation Temperature | ~90 °C |
| Compliance | AS4603, EN730/DIN 8521, ISO 5175 Class I, AS4267-1995, UL, BAM tested |
Applications
Ideal for use at the regulator or pipeline outlet in environments where medium gas flow is needed—such as fabrication shops, mobile welding units, and maintenance bays requiring enhanced safety measures.
Why Choose the COMET F2R?
- Delivers triple-layer safety through valve, arrestor, and thermal cut-off mechanisms
- Reliable, maintenance-free design—no reset needed after activation
- Certified across multiple safety standards for peace of mind in professional settings
Ensure your oxy-fuel operations are safe and code-compliant with the CIGWELD COMET F2R Flashback Arrestor (Oxygen, Regulator Mount).
