MIG TORCH BINZEL MB25 4MTR EVO PRO

Binzel MB EVO PRO 25 MIG Torch – 4m, Air-Cooled (004.0672.1)

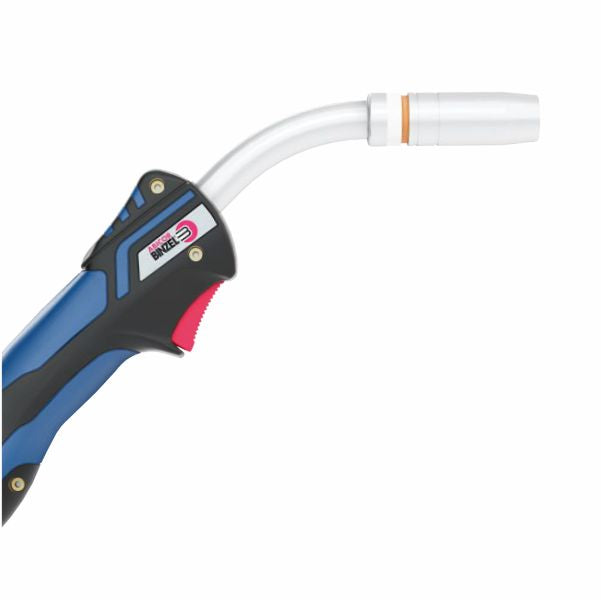

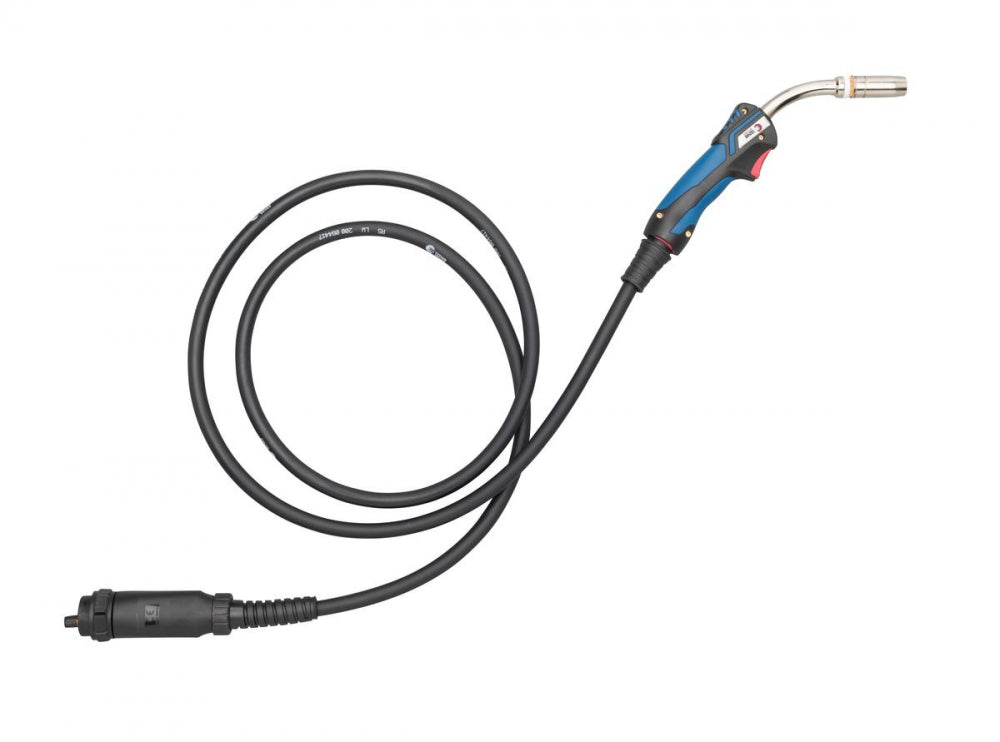

The Binzel MB EVO PRO 25 is a 230 amp air-cooled MIG/MAG torch with a Euro (KZ-2) central connector, sitting between the light-duty MB 15 and the heavy-duty MB 36 in the EVO PRO range. It's rated at 230A on CO2 and 200A on mixed gases at a 60% duty cycle, running 0.8–1.2mm wire, with technical data stated to EN 60974-7. This 4m version (part no. 004.0672.1) is the most popular length on the shop floor — enough reach to work around a jig or a larger weldment without leaving the machine behind.

If you're running a 180–250A machine, the MB 25 is usually the right match. The MB 15 tops out at 180A and won't take 1.2mm wire, while the MB 36 is more torch than a 200A machine needs — heavier in the hand and more expensive to consumable. The 25 gives you 1.2mm capability and headroom to the top of your machine's range without the extra bulk.

At 4m, weight matters more than it does on a short lead, and that's where the EVO PRO earns its keep. Binzel's BIKOX® LW cable assembly is up to 34% lighter than the conventional cable, so the extra metre isn't extra drag on your wrist all shift. The two-component handle has a tapered profile, repositioned trigger and ball-joint cable support so the torch stays balanced overhead and out of position, and the internal geometry keeps the grip cooler under load without giving up mechanical strength.

It runs the proven MB 25 wear parts, so if you already stock them nothing changes.

Key features

• 230A CO2 / 200A mixed gas at 60% duty cycle
• 4m lead — reach around larger jobs without moving the machine
• Handles 0.8mm through to 1.2mm wire
• BIKOX® LW cable assembly, up to 34% lighter than standard
• Two-component ergonomic handle with tapered design and optimised trigger position
• Cooler grip thanks to air-cooled internal geometry
• Robust, size-optimised Euro central connector (KZ-2)
• 50° swan neck (replacement part 004.0663.1)
• Uses standard Binzel MB 25 wear parts
• Also available in 3m (004.0671.1) and 5m (004.0673.1)

Specifications

Common wear parts

Frequently asked questions

What amperage is the Binzel MB EVO PRO 25 rated to?
230A with CO2 and 200A with mixed shielding gases, both at a 60% duty cycle. The rating is the same across all three lead lengths.

Should I get the 3m, 4m or 5m?
4m is the usual pick for general fabrication — enough reach to move around a job, still short enough to feed reliably. Go to 3m if you're welding close to the machine or running aluminium, and 5m only if you genuinely need the reach.

Does the longer lead affect wire feeding?
It can. Every extra metre adds friction in the liner, which matters most with soft or small-diameter wire. At 4m with 0.8–1.2mm steel wire you shouldn't have issues, provided the liner is the right size, trimmed correctly and kept clean.

What size machine suits an MB 25 torch?
Machines in the 180–250A range. Above that, or for all-day heavy section work, step up to the MB 36 (320A). For 0.6–1.0mm wire on a small single-phase unit, the MB 15 (180A) will do.

Will it fit my welder?
It has a standard Euro connection, so it fits most Euro-style MIG machines and wire feeders, including Kemppi, Fronius, UNIMIG, CIGWELD, WIA and Lincoln units with a Euro outlet.

Do MB 36 consumables fit the MB 25?
No. The MB 25 uses M6 contact tips and its own nozzle sizes, while the MB 36 uses a larger M8 tip and bigger nozzles. Order MB 25 parts specifically.

Is this torch water-cooled?
No, it's air-cooled (gas-cooled). Binzel makes liquid-cooled models in the EVO PRO range from 325A up if you need one.

Choosing your lead length
