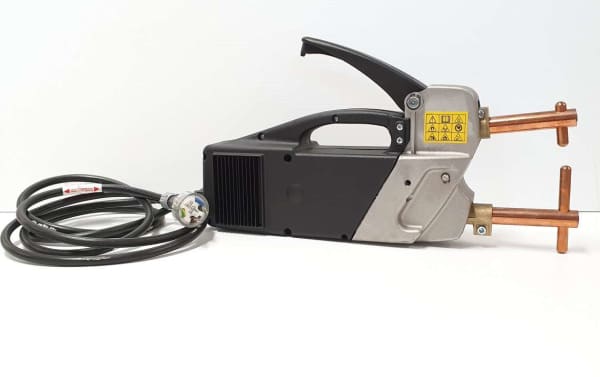

WELDMAX SPOT WELDER HAND HELD 22E 240V PORTABLE
Hand held Spot welder
Portable spot welders which can be directly connected to a grounded power outlet. Designed to be used in demanding applications. Electronic time control and Amperage / thickness settings are simple to use.The high level of transformer insulation safeguards the operator. Simplicity and low operating costs are the strong points of the Weldmax Spot welders.
Spot Welder - Overview
The Weldmax hand held spot welders are light weight, reliable and simple to operate units for the panel beater, car restoration, smash repair and sheet metal fabrication industries. The portable spot welder 22E series can weld steel and stainless steel with ease. There are a variety of arms available for both the units enabling a range of applications. The Weldmax 22E has the added advantage of coming standard with a timer.
Spot Welder Features

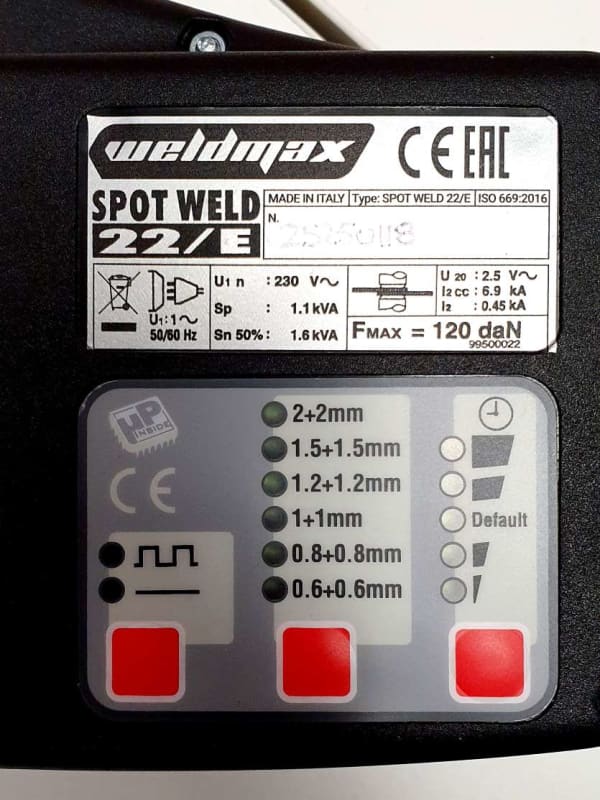

- Microprocessor controlled spot welder
- Maximum welding thickness 2+2 mm
- Automatic adjustment of welding time and current manual adjustment
- Continuous or pulsed output control for specialised metals and applications
- 125mm arm length (throat depth)
- Clamp force adjustment
- Electronic welding timer adjustable
- Made in Italy / Europe
- 1year warranty from delivery date

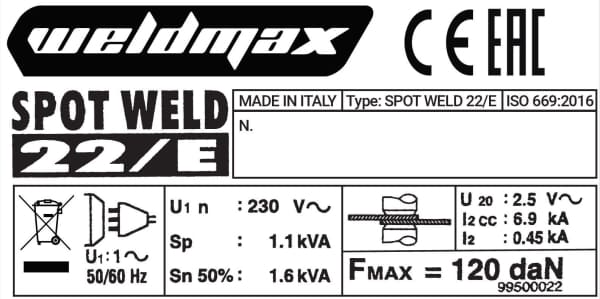

Input voltage (1ph)
|
230V - 50/60Hz |
| Delayed fuse | 25 A |
| Power 50% | 2.3 KW |
| Spot current | 6300 (1.5%) Max A |
| Max electrode force (at 6 bar) | 2 + 2 / Ø 6 + 6 mm |
| Spots/Thickness | 300 / 1 + 1 N°/mm |
No load output voltage  Max. |
2.5 V |
| Power Max. | 13 KW |
Machine (LxWxH)
|
100x440x185 mm |
Package (LxWxH)
|
165x455x340 mm |
Weight box/net
|
11.4 / 11.1 kg |
