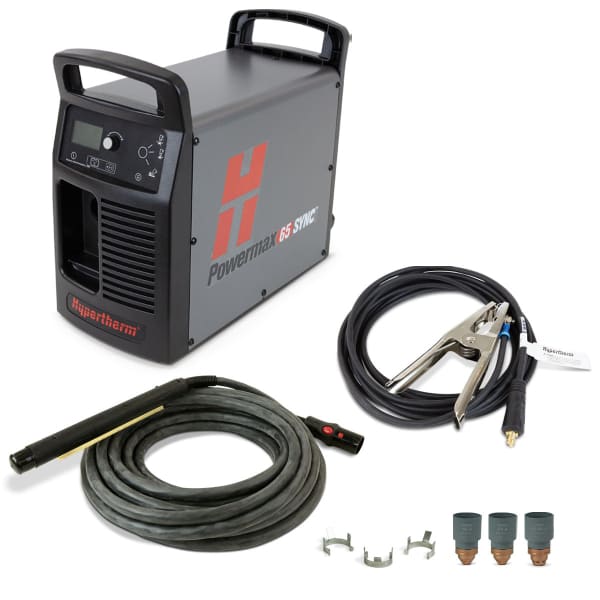

HYPERTHERM POWERMAX65 SMARTSYNC CPC & SERIAL W/ 7.6MT TORCH

Specifications

• • Input Voltages: 200 – 480 v, 1-ph, 50/60 Hz
    • 200 – 600 v, 3-PH, 50/60 Hz
  • Kilowatt Output: 9kW
  • Input Current: 200/208/240480 v
    • 1-PH 52/50/44/22 A @ 9kW
    • 200/208/240/480/600 v
    • 3-PH 32/31/27/13/13 A @ 9kW
  • Output Current: 20 – 65 A
  • Rated Output Voltage: 139 VDC
  • Duty Cycle @ 40°C (104°F): 50% @ 65 A, 230 – 600 v, 1/3 – PH
    • 40% @ 65 A, 200 – 208 v, 1/3 PH
    • 100% @ 46 A, 230 – 600 v, 1/3 – PH
  • Open Circuit Voltage: 295 VDC
  • Gas Supply: Clean, dry, oil-free air or nitrogen
  • Recommended gas inlet flow rate/ pressure: cutting – 189 I/min (400 scfh: 6.7 scfm)

  @ 85 psi (5.9 bar)

  Gouging – 450 scfh; 212 I/min (7.5 scfm) @ 70 psi (4.8 bar)

  • Input Power Enable Length: 3m (10)
  • Power Supply Type: Inverter - IGBT
